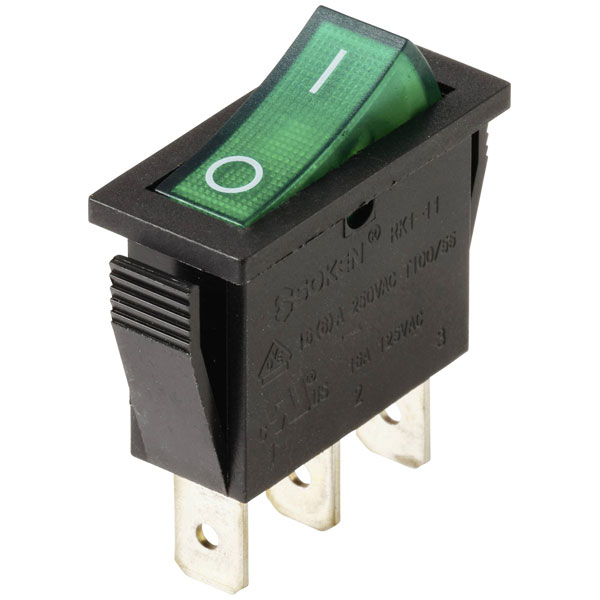

TRU COMPONENTS TC-13599536 Toggle switch 250V 16A Off/On latch Rocker

TRU COMPONENTS TC-13599536 is a rocker switch designed for reliable electrical operation in various applications. This robust switch is rated for a maximum voltage of 250 V AC and a current capacity of 16 A, making it suitable for demanding electrical tasks. It features a single Off/On position, controlled by a latch mechanism, ensuring secure and stable switching performance. The rocker design allows for ease of use, making it ideal for applications in appliances, lighting control, and power distribution systems that require a straightforward and efficient switching solution. Its durable construction ensures long-lasting performance in environments where dependability is critical.

Mounting Type	Panel mount
Contact Configuration	SPDT
Switch Function	On-Off
Current Rating (Amps)	16A
Actuator Marking	0/1
Illumination Type	Area illumination
Illumination Colour	Green
Bulb Type	Glow lamp
Colour	Green
Contact Material	Cu-alloy, nickel plated
Contact Resistance	<20mO
Content	1
Dimensions	(L x W x H) 30.5 x 13.8 x 38 mm
Durability	300,000 switching cycles
Electrical lifespan	300,000 switching cycles
Front panel cut-out	10.3 x 28mm
Front panel thickness	2mm
Height	38mm
Length	30.5mm
Material	Thermoplastic
Max. temperature	80°C
Min. temperature	-10°C
Number of Pins	3
Print motif	0/I
Product Type	Toggle switch
Switch position	1 x Off/On
Type	TC-13599536
Voltage Rating	250V AC
Width	13.8mm
