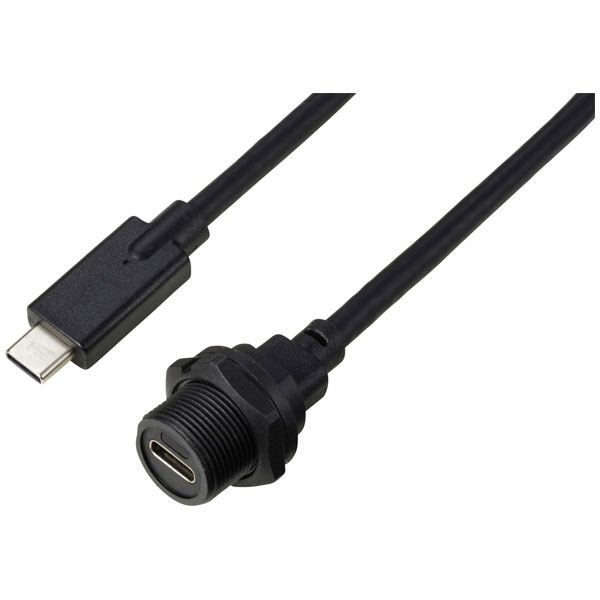

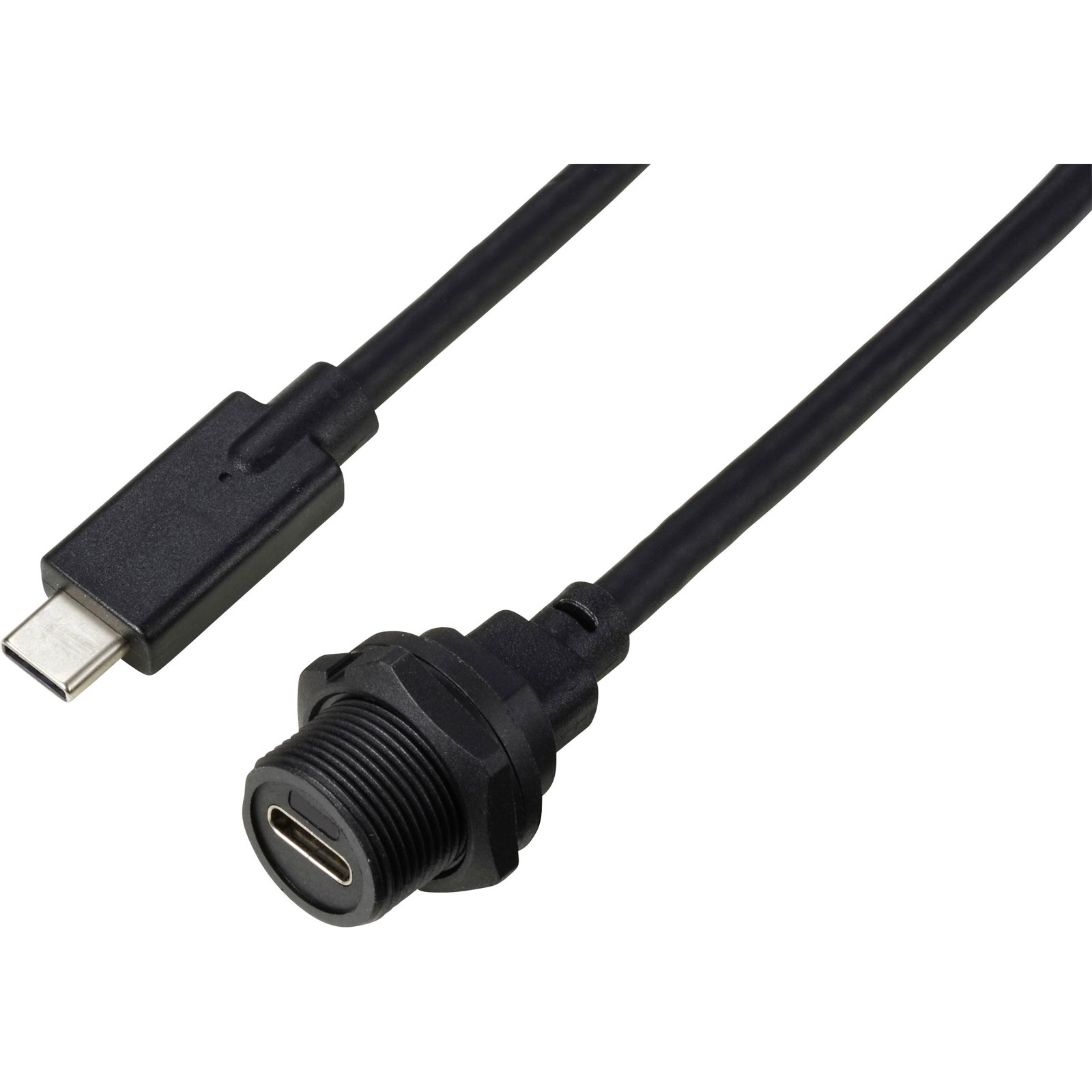

TRU COMPONENTS TC-13543600 USB-C® 3.1 M-F Back mount 0.5m Plastic waterproof

TruComponents TC-13543600 is an advanced USB-C® 3.1 male to female back mount receptacle overmoulded cable, featuring a robust threaded and plastic waterproof design that ensures reliable operations in demanding environments. With a length of 0.5 metres, this cable offers both flexibility and durability, making it ideal for applications requiring secure, high-speed data transmission and power delivery. The assembly is specifically engineered for scenarios where environmental sealing is critical, such as industrial automation, outdoor communications equipment, and rugged computing solutions. The overmoulded construction provides excellent strain relief, reducing the risk of damage due to mechanical stress, while maintaining full compliance with USB 3.1 specifications to support super-speed data transfer rates.

Cable Length	0.5m
Connector 1	USB 3.1 C male
Connector 2	USB-C
Colour	Black
Type	Plastic waterproof cable assembly
AWG	32-24
Cable Diameter	4.8mm
Cable Diameter Range	4.65 - 4.95 mm
Case Material	PA
Connection	USB-C® 3.1 cable
Contact Material	Copper alloy
Content	1
IP Rating	IP67
Length	500mm
Max. temperature	80°C
Min. temperature	-25°C
Mounting Hole Diameter	15.8mm
Nominal current (details)	3A
Nominal voltage (details)	30V
Number of Pins	16
Pins	16
Product Type	USB connector
Type A	USB-C® 3.1 socket
Type B	USB-C® 3.1 plug
