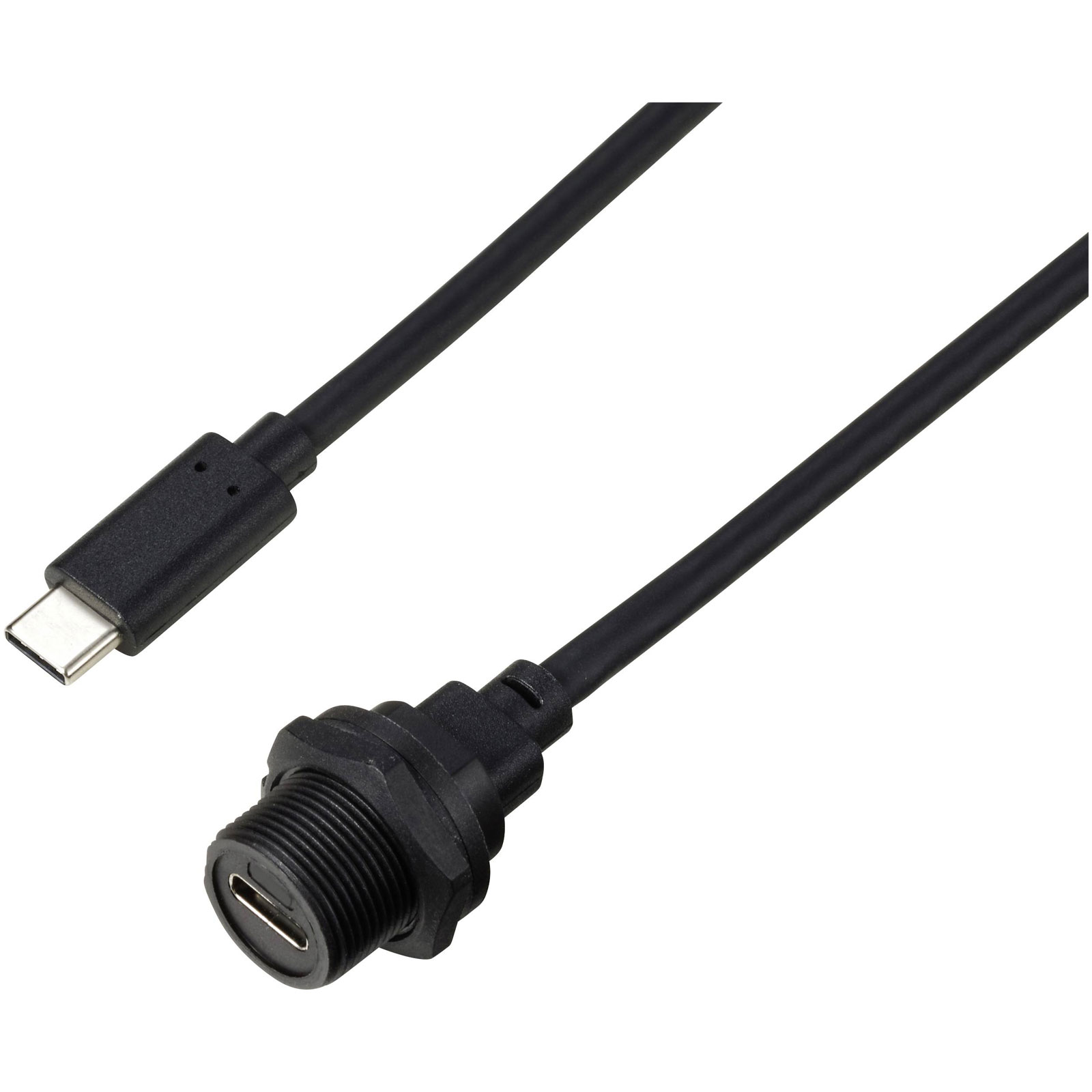

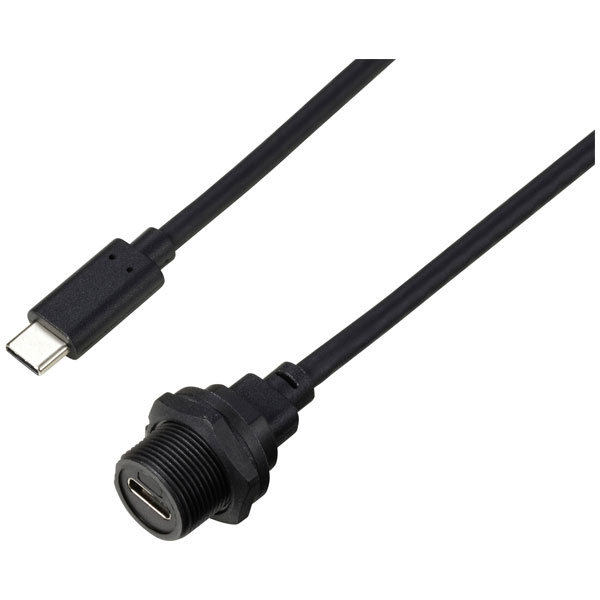

TRU COMPONENTS TC-13543596 USB-C Male Female Back mount Waterproof Cable 0.5m

TruComponents TC-13543596 is a robust USB-C® 3.0 Male to Female back mount receptacle overmoulded cable, engineered with a threaded design to ensure a secure and reliable connection. This 0.5 metre cable assembly employs a plastic waterproof construction, ideal for use in environments where moisture resistance and durability are critical. Its design facilitates easy integration into a range of applications, including industrial automation systems, data communication hubs, and outdoor electronic interfaces. The cable assembly not only supports efficient data transmission but also provides a sturdy solution for connecting peripherals, catering to the rigorous demands of engineering projects. As a single-piece assembly, it simplifies inventory management and is an optimal choice for specialised technical installations requiring dependable performance.

Cable Length	0.5m
Connector 1	USB-C
Connector 2	USB-C
Colour	Black
Type	Plastic waterproof cable assembly
AWG	32-24
Cable Diameter	4.5mm
Cable Diameter Range	4.35 - 4.65 mm
Case Material	PA
Connection	USB-C® 3.0 cable
Contact Material	Copper alloy
Content	1
IP Rating	IP67
Length	500mm
Max. temperature	80°C
Min. temperature	-25°C
Mounting Hole Diameter	15.8mm
Nominal current (details)	3A
Nominal voltage (details)	30V
Number of Pins	10
Pins	10
Product Type	USB connector
Type A	USB-C® 3.0 socket
Type B	USB-C® 3.0 plug
