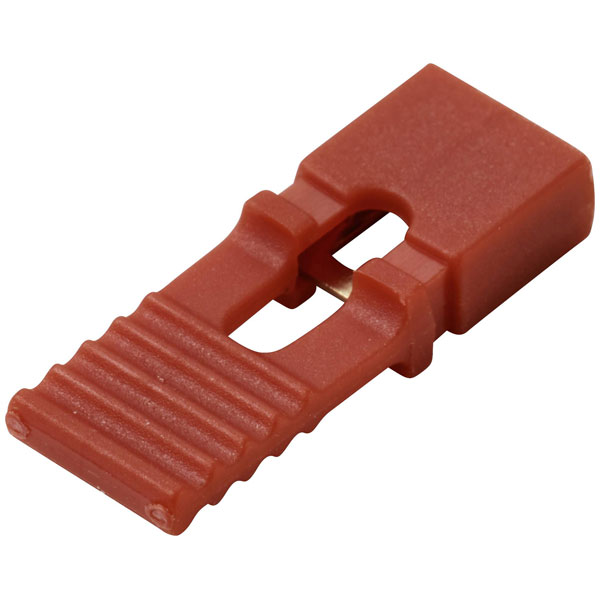

TRU COMPONENTS TC-13537832 Shorting jumper 2.54 mm spacing 2 pins 1 pc

TruComponents TC-13537832 is a shorting jumper designed for use with 2.54 mm (0.1 inch) pitch pin headers, featuring a single-unit construction with dual pins. This component is manufactured to facilitate electrical bridging between adjacent pins, thereby enabling or disabling connections on circuit boards without the need for tools or soldering. Engineered to support a range of prototyping and testing applications, the TC-13537832 finds frequent use in development environments where electronic configurations may require frequent modifications. The precise 2.54 mm pitch spacing ensures compatibility with industry-standard headers, making it an essential component for engineers involved in electronic design, testing, and developmental prototyping scenarios.

Type	TC-13537832
Pitch	2.54mm
Colour	Red
Contact Material	Copper alloy
Contact surface	Gold
Content	1
CS	2.54mm
Dimensions	(L x W x H) 2.4 x 13.5 x 5 mm
Height	5mm
Insulation Material	PBT
Length	2.4mm
No. of Rows	1
Nominal Current	3A
Nominal Voltage	500V AC
Pin shape	Rectangular
Pins	2
Pins per row	2
Product Type	Shorting jumper
Width	13.5mm
