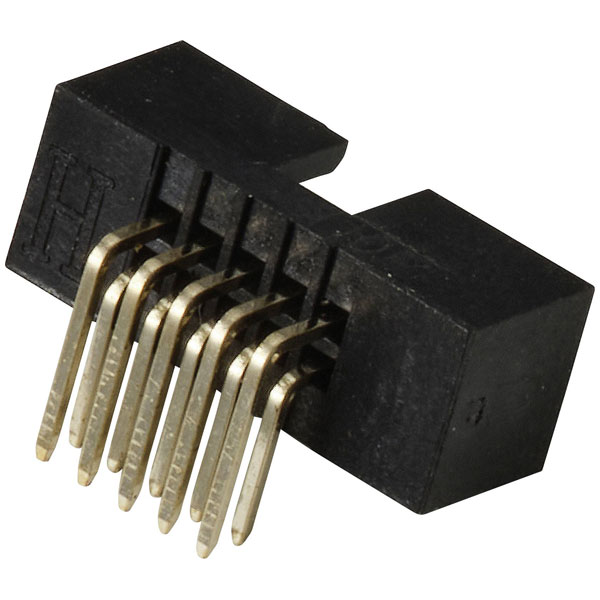

TRU COMPONENTS TC-13537812 Pin strip Contact spacing 1.27mm 10 pins 2 rows

TRU COMPONENTS TC-13537812 is a dual-row pin header featuring a contact spacing of 1.27 mm and accommodating a total of 10 pins. This pin strip is designed for reliable and precise connectivity in electronic circuits, ensuring a stable connection between components on a printed circuit board. The compact design with closely spaced pins makes it suitable for high-density applications where space conservation is crucial. These pin headers are frequently utilised in applications such as computing hardware, networking equipment, and other electronic devices that require robust interconnectivity solutions. Engineered with precision, the TC-13537812 facilitates versatile configuration options for engineers seeking dependable and efficient electronic interfacing.

Type	TC-13537812
Pitch	1.27 mm
Colour	Black
Connector contact surface	Gold
Connector orientation	Perpendicular (to the PCB)
Connector Type	Pin strip, right angle
Contact Material	Copper alloy
Content	1
CS	1.27mm
Dimensions	(L x W x H) 12.7 x 5 x 5 mm
Height	5mm
Insulation Material	PBT
Length	12.7mm
Max. temperature	+105°C
Min. temperature	-40°C
No. of Rows	2
Nominal Current	1A
Nominal Voltage	500V AC
Pins per row	5
Product Type	Pin strip
Total number of pins	10
Width	5mm
