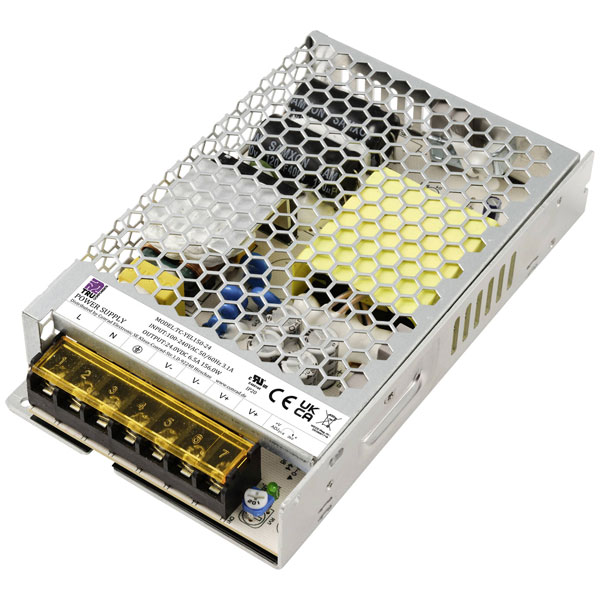

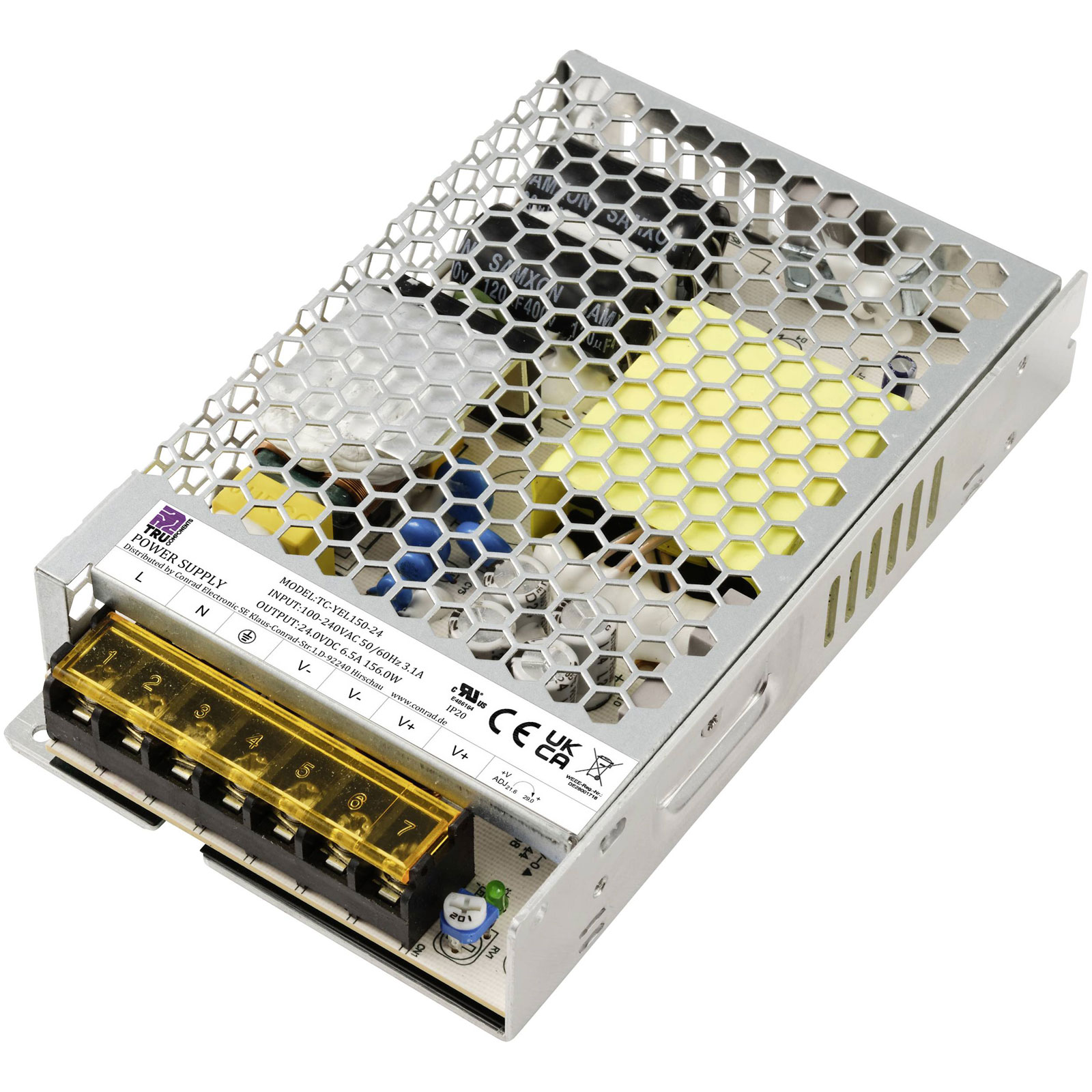

TRU COMPONENTS TC-13496756 Power supply unit 24V DC 6.5A 156W

TruComponents TC-13496756 is a robust power supply unit designed to deliver a consistent output of 24 V DC with a current rating of 6.5 A, providing a total power of 156 W. Engineered for reliability and efficiency, this unit is ideal for integration in various industrial and computing applications where stable power delivery is crucial, such as in data processing centres or automated control systems. The TC-13496756's compact design ensures it can be easily integrated into existing systems, offering a reliable power source for sensitive electronics that require precise voltage regulation. With its emphasis on high performance and safety standards, this power supply unit is well-suited for environments requiring dependable DC power solutions.

Type	Power supply unit
Output Voltage	24V DC
Power Rating	156W
Output Current	6.5A
Input Voltage	100 - 240V AC
Ambient temperature	25°C
Connection	Screw connector
Consumption (standby)	0.5W
Dimensions	(L x W x H) 159 x 97 x 30 mm
Efficiency to	89%
Height	30mm
Input frequency	50/60Hz
Input voltage (max.)	264V AC
Length	159mm
Max. operating temperature (derating)	70°C
Max. output current	6.5A
Min. input voltage	90V AC
Min. operating temperature (derating)	-20°C
No. of outputs	1
Output voltage (max.)	24V DC
Power	156W
Protection Class	I
Residual ripple	200 mVpp
Tolerance (output voltage)	+/-1%
Weight	480kg
Width	97mm
