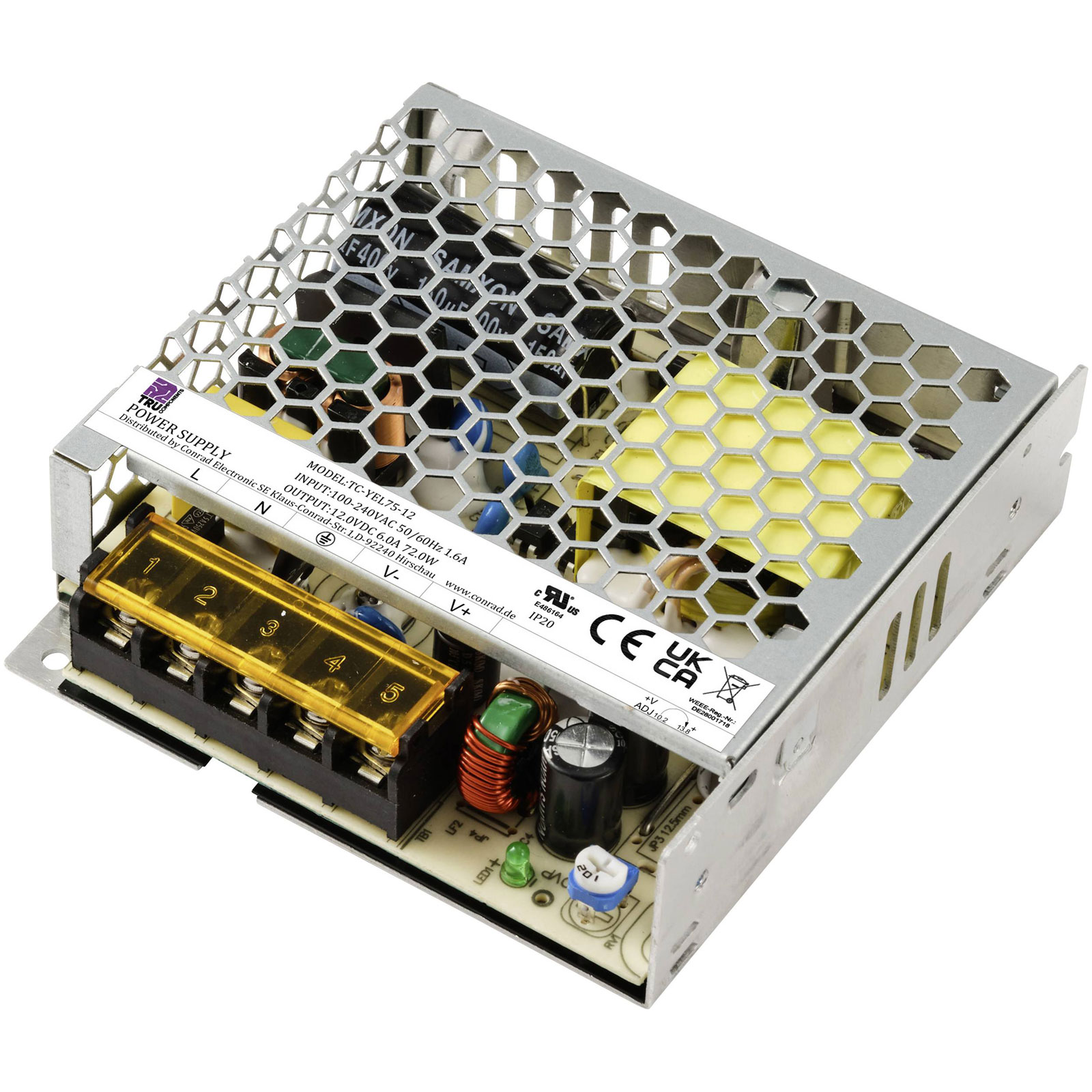

TRU COMPONENTS TC-13496728 Power supply unit 12 V DC 6 A 72 W

TruComponents TC-13496728 represents a robust power supply unit, engineered to deliver a stable output of 12 V DC at a maximum current of 6 A, resulting in a total power capacity of 72 W. This unit is designed for efficient power conversion, suitable for integrating into computer systems or other electronics that require a reliable 12 V DC supply. The engineering of the TC-13496728 ensures consistent performance, making it ideal for applications where precise power delivery is crucial, such as in embedded systems, telecommunications equipment, or custom electronics projects. The device's design focuses on maintaining efficiency and stability, thus providing an essential component in environments where consistent power is critical.

Type	Power supply unit
Output Voltage	12 V DC
Power Rating	72W
Output Current	6A
Input Voltage	100 - 240V AC
Ambient temperature	25°C
Connection	Screw connector
Consumption (standby)	0.3W
Dimensions	(L x W x H) 99 x 97 x 30 mm
Efficiency to	88%
Height	30mm
Input frequency	50/60Hz
Input voltage (max.)	264V AC
Length	99mm
Max. operating temperature (derating)	70°C
Max. output current	6A
Min. input voltage	90V AC
Min. operating temperature (derating)	-20°C
No. of outputs	1
Output voltage (max.)	12V DC
Power	72W
Protection Class	I
Residual ripple	120 mVpp
Tolerance (output voltage)	+/-1%
Weight	250g
Width	97mm
