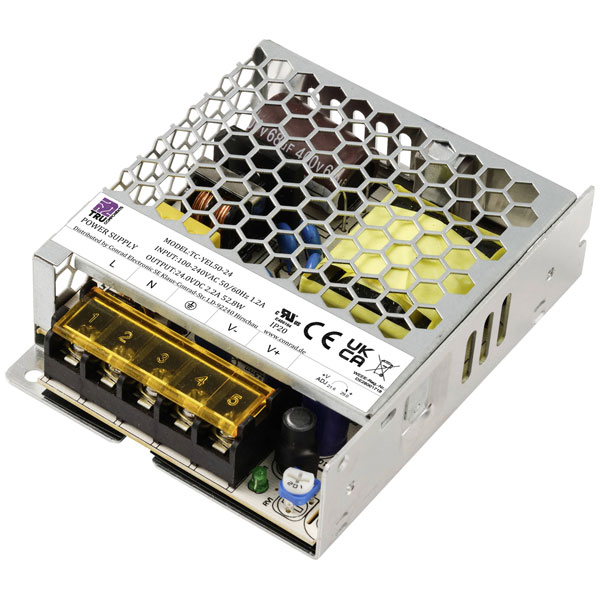

TRU COMPONENTS TC-13493664 Power supply unit 24 V DC 2.2 A 52.8 W

TruComponents TC-13493664 is a robust power supply unit designed to consistently deliver 24 V DC with a current of 2.2 A, supporting a maximum power output of 52.8 W. This unit is suitable for various applications within industrial automation and computer systems due to its reliable voltage regulation and transient response. Engineers will find the TC-13493664 particularly useful in environments where stable power delivery is critical, as it operates efficiently under demanding electrical conditions. Its compact design allows for integration in space-constrained settings, making it ideal for use in programmable logic controllers (PLCs) and other microcontroller systems requiring precise power management. Noteworthy is its compliance with industry-standard safety certifications, ensuring both performance integrity and user safety.

Type	Power supply unit
Output Voltage	24V DC
Power Rating	52.8W
Output Current	2.2A
Input Voltage	100 - 240V AC
Ambient temperature	25°C
Connection	Screw connector
Consumption (standby)	0.3W
Dimensions	(L x W x H) 99 x 82 x 30 mm
Efficiency to	88%
Height	30mm
Input frequency	50/60Hz
Input voltage (max.)	264V AC
Length	99mm
Max. operating temperature (derating)	70°C
Max. output current	2.2A
Min. input voltage	90V AC
Min. operating temperature (derating)	-20°C
No. of outputs	1
Output voltage (max.)	24V DC
Power	52.8W
Protection Class	I
Residual ripple	150 mVpp
Tolerance (output voltage)	+/-1%
Weight	230g
Width	82mm
