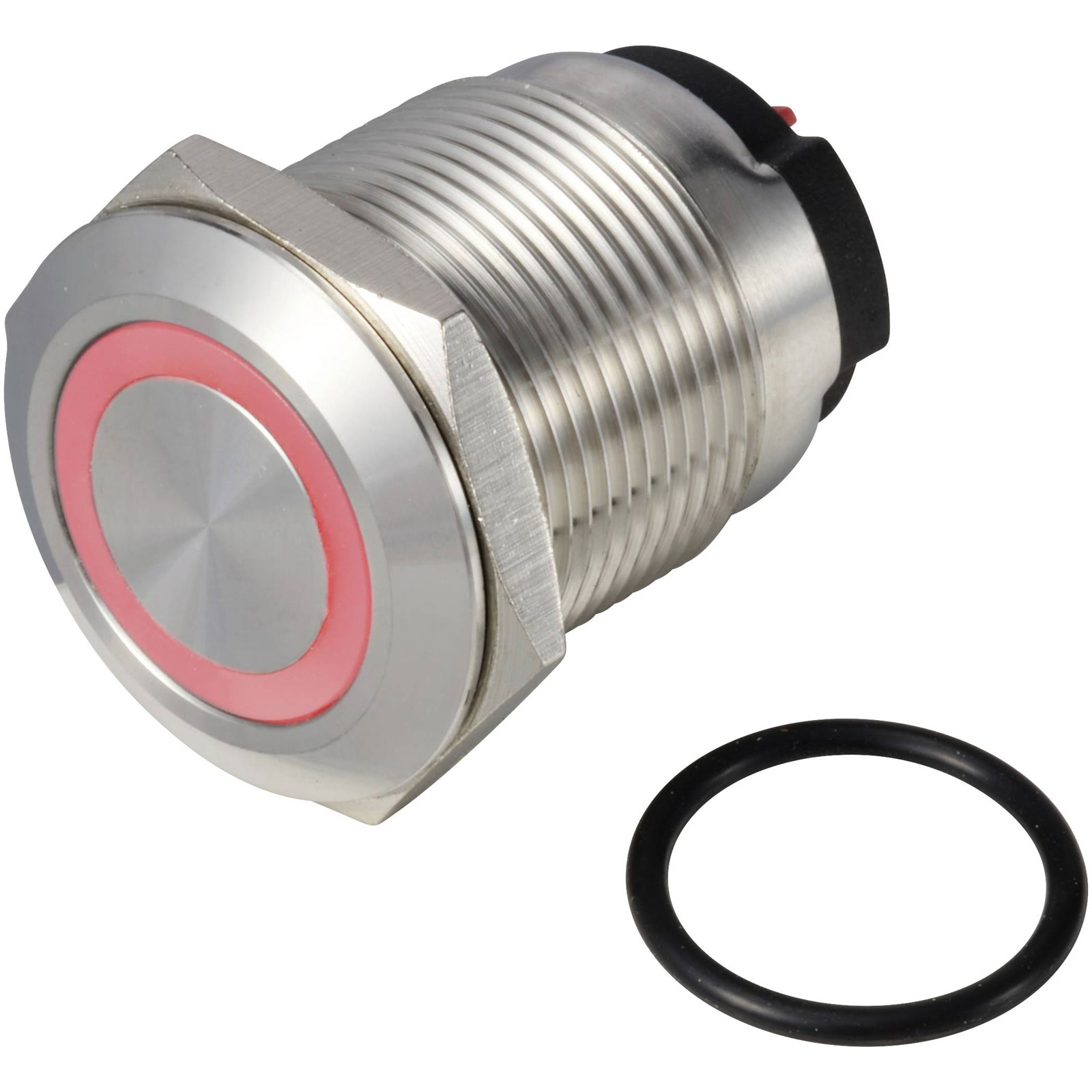

TRU COMPONENTS TC-13224212 Pushbutton Red IP65 36V DC/AC 2A 1xOff/(On) Latch

TRU COMPONENTS TC-13224212 is a robust push-button switch designed for reliable use in demanding environments. This model features a latching mechanism, operating with a singular off/(on) configuration, and supports both DC and AC currents up to 36 V and 2 A. The switch is equipped with an IP65 rating, ensuring water and dust resistance, making it suitable for outdoor applications or harsh industrial settings. The distinctive red actuator provides clear visual feedback, enhancing operational safety. Typical applications include control panels, industrial machinery, and automation systems where dependable momentary switching is essential for functionality and safety compliance.

Type	ONPOW6319F-10ZE/Q/R/12V/S
Contact Configuration	SPNO
Switch Function	Off-(On)
Mounting	Panel
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Red
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Maximum Temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
