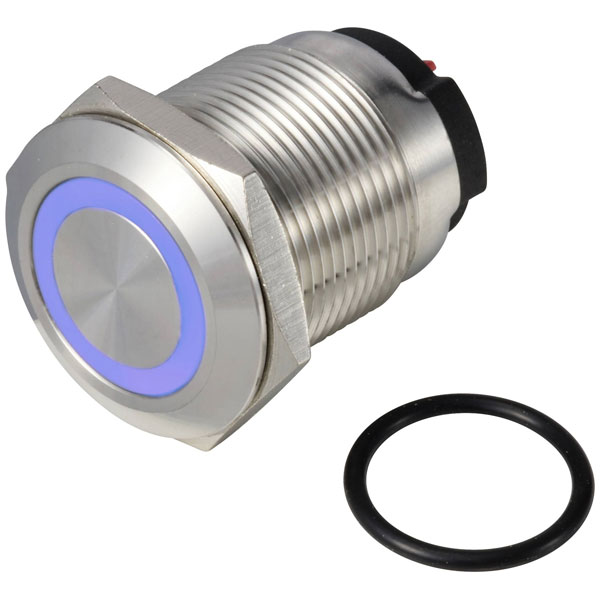

TRU COMPONENTS TC-13224204 Pushbutton Blue 36 V DC/AC 2 A IP65 Momentary

TRU COMPONENTS TC-13224204 is a robust pushbutton switch known as the ONPOW6319F-10E/Q/B/12V/S, distinguishing itself with a blue actuator. Designed for demanding applications, it supports an electrical rating of 36 V DC/AC at a current of 2 A, ensuring reliable performance within its designated voltage range. With an ingress protection rating of IP65, it is suitable for use in environments where dust and water resistance are critical. The switch features a momentary operation type, performing a single pole off/(on) function, making it ideal for control panels, instrumentation, and automotive systems where user input is transient. Its durable construction and reliable functionality make it a preferred choice for engineers seeking dependable pushbutton solutions in both indoor and outdoor settings.

Type	ONPOW6319F-10E/Q/B/12V/S
Contact Configuration	SPNO
Switch Function	Off-(On)
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Blue
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
