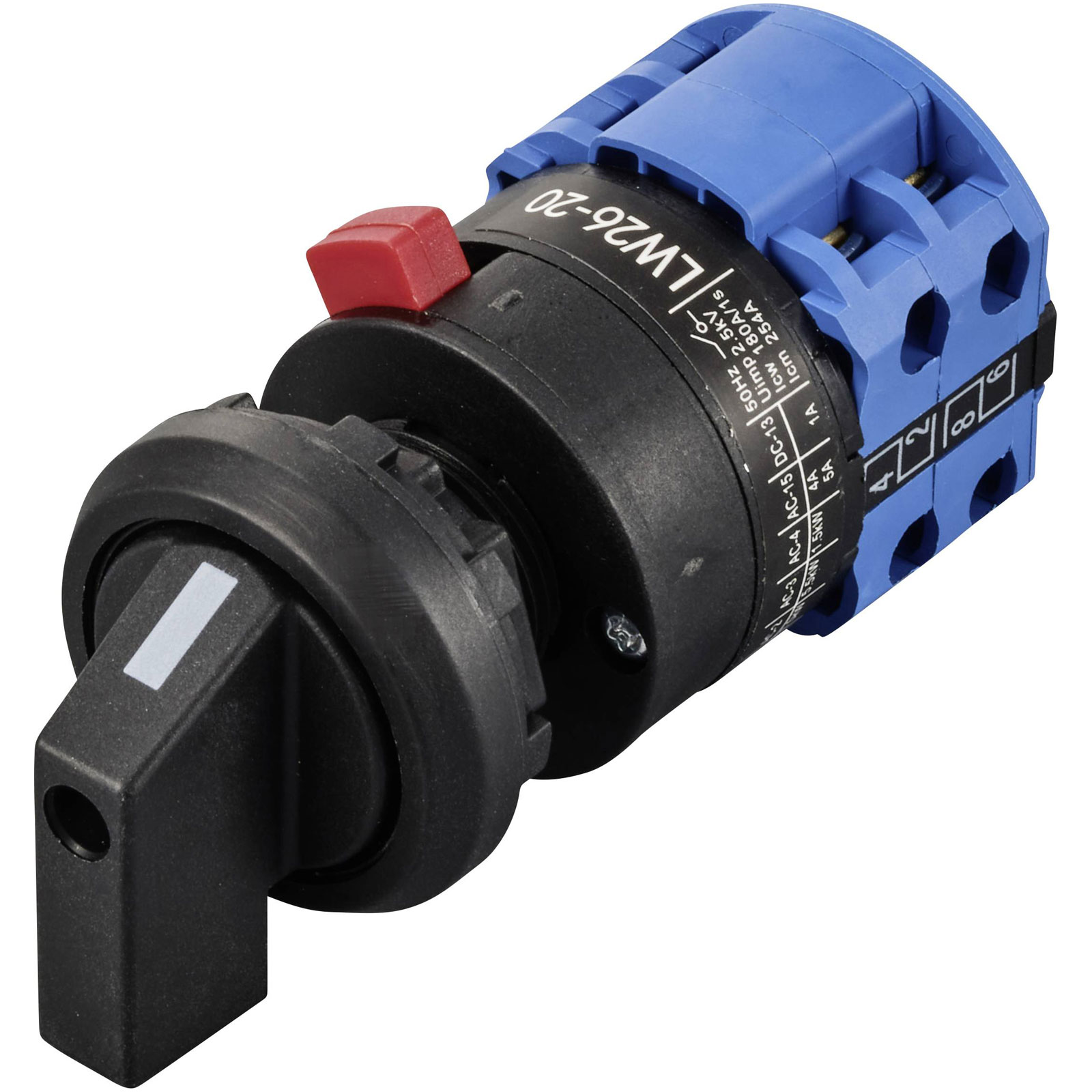

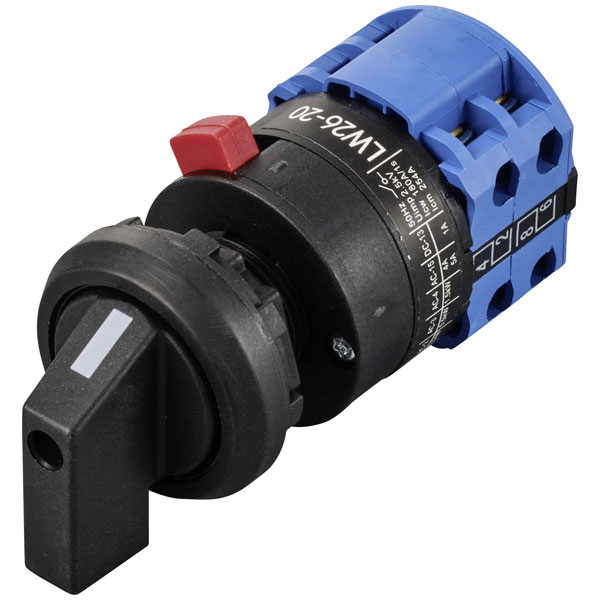

TRU COMPONENTS TC-12835348 Limit switch 20 A 690 V Black Grey 1 pc

TruComponents TC-12835348, also known by the alternate description 3208837 - TruComponents TC-12835348, is a robust limit switch designed to handle currents up to 20 A and voltages up to 690 V. This product features a durable construction with a black and grey colour scheme, indicating its suitability for industrial environments where reliability and resistance to wear are paramount. The limit switch is often employed in systems requiring precise actuation and control, such as conveyor belts, automated machinery, and safety circuits. Its high current and voltage ratings make it particularly well-suited for heavy-duty applications where electrical endurance is critical.

Type	TC-LW26-20 6C04/2C55I
Connection	Screws
Content	1
Dimensions	(L x W) 39 mm x 39 mm
Functions	latch
Length	39mm
Max. temperature	40°C
Min. temperature	-5°C
Operation type	Toggle
Print motif	0/1
Product Type	Limit switch
Recess diameter	22.3mm
Switching angle	1 x 60 °
Switching current (max.)	20A
Switching Voltage	690V
Width	39mm
