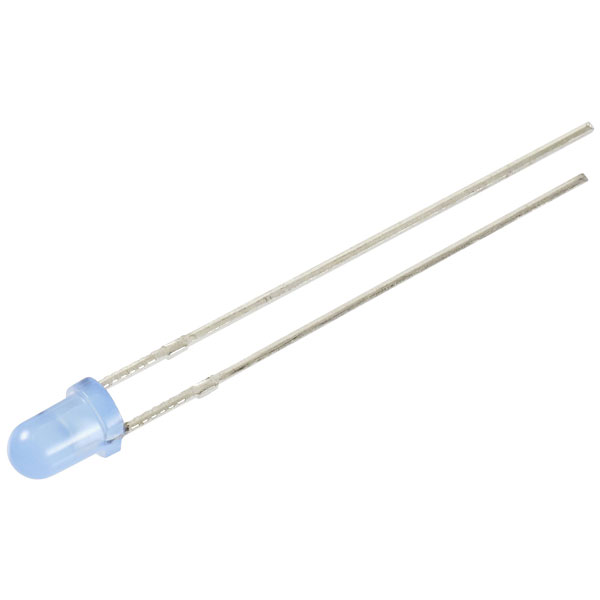

TRU COMPONENTS TC-10551824 LED Blue Circular 3 mm 750 mcd 30° 12 mA 5 V

TruComponents TC-10551824 is an LED strip light known for its compact and efficient design. This component features a blue circular LED with a diameter of 3 mm, providing a luminous intensity of 750 millicandelas at a viewing angle of 30 degrees. Designed to operate at a current of 12 milliamperes and a voltage of 5 volts, it is suitable for a variety of engineering applications, including indicator lights, backlighting, and decorative lighting installations. The precision of the LED's specifications makes it an ideal choice for use in circuit design where spatial constraints and energy efficiency are critical. Its robust performance under specified conditions enhances reliability in both academic and professional engineering projects.

Lens Type	Circular
Casing	3 mm
Colour	Blue
Content	1
Forward current I(F)	12mA
Forward Voltage U(F)	5V
Light intensity I(V)	750mcd
Max. temperature	85°C
Min. temperature	-30°C
Product Type	LED wired
Radiation angle	30°
Type	Circular
Type (LEDs)	Diffused
Wavelength	470nm
