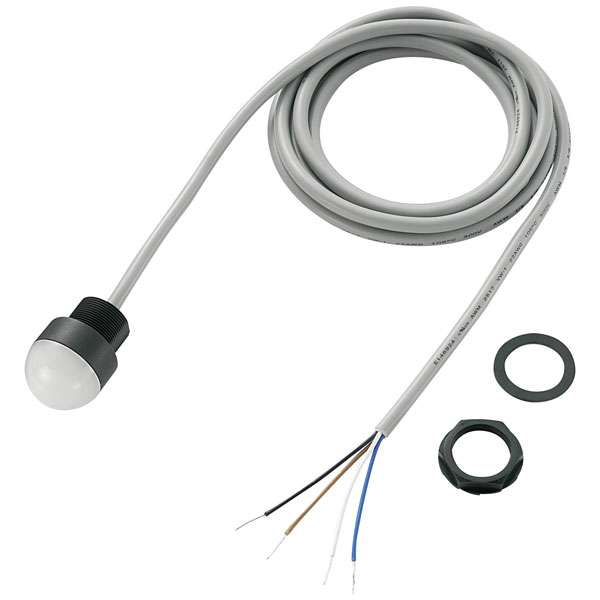

TRU COMPONENTS 1588016 TC-R 9-125 Indicator Light Multi-colour 12/24 V DC

TruComponents TC-R 9-125 LA 6-11-BMRGY 1, also known as the TruComponents 1588016, is a 4.8mm multi-colour LED indicator light offering green, red, and amber illumination. This component is designed to operate within a 12 V DC to 24 V DC range, making it versatile for various electronic and electrical applications. Its primary function is to visually signal system statuses, ideal for control panels, automotive dashboards, and industrial machinery interfaces where clear status indication is critical. The LED's robust construction ensures reliability in environments requiring frequent monitoring and status updates, while its multi-colour capability allows for immediate recognition of different operating conditions or errors. This LED indicator is thus a crucial part in systems where quick visual feedback is necessary for safety and operational efficiency.

Type	TC-R 9-125 LA 6-11-BMRGY 1
Case Colour	Black
Connection	Open end cable
Content	1
Diameter	30mm
Dimensions	(Ø x L) 30 mm x 44.5 mm
Head Diameter	30mm
Head height	27mm
IP Rating	IP67
Length	44.5mm
Material	Polyamide 6.6
Max. operating voltage	30V DC
Max. temperature	85°C
Min. operating voltage	10V DC
Min. temperature	-25°C
Mounting Type	Screw
Operating Current	20mA
Operating Voltage	10 - 30 V DC
Product Type	LED indicator light (multi-colour)
Recess diameter	20.5mm
