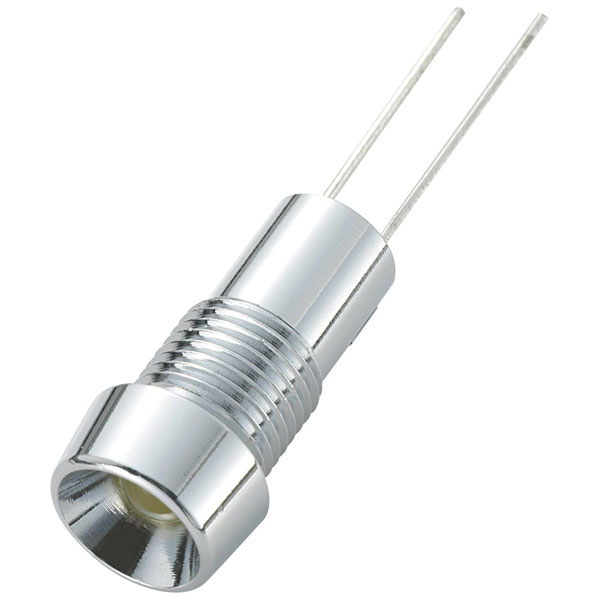

TRU COMPONENTS 1588014 TC-R 9-126 L LED indicator light amber 24V 4.2mA

TruComponents TC-R 9-126 L is an amber 24V LED indicator light, also known by the identifier TruComponents 1588014. This 4.8mm LED indicator is designed for precision and reliability, operating at a voltage of 24 V DC with a current of 4.2 mA. The compact size and energy-efficient design make it an ideal choice for a variety of engineering applications, including industrial control panels, automotive dashboards, and electronic equipment displays. The amber hue provides clear and distinct signalling, ensuring visibility in diverse operating environments. This indicator light is suitable for use in systems where both durability and high performance are required.

Type	TC-R 9-126 L Amber 24V
Case Colour	Chrome
Colour	Amber
Connection	Soldering
Content	1
Forward current I(F)	4.2mA
Light intensity I(V)	8mcd
Material	Brass
Material properties	shiny
Max. temperature	70°C
Min. temperature	-40°C
Mounting Type	Screw
Operating Voltage	24V DC
Product Type	LED indicator light
Radiation angle	30°
Recess diameter	8mm
