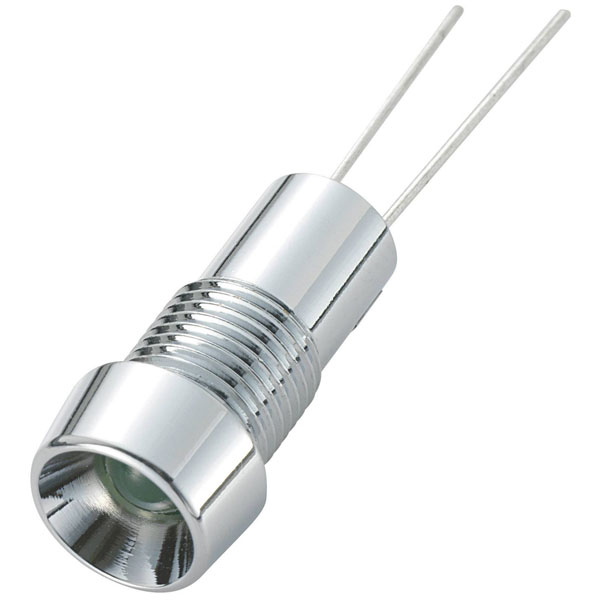

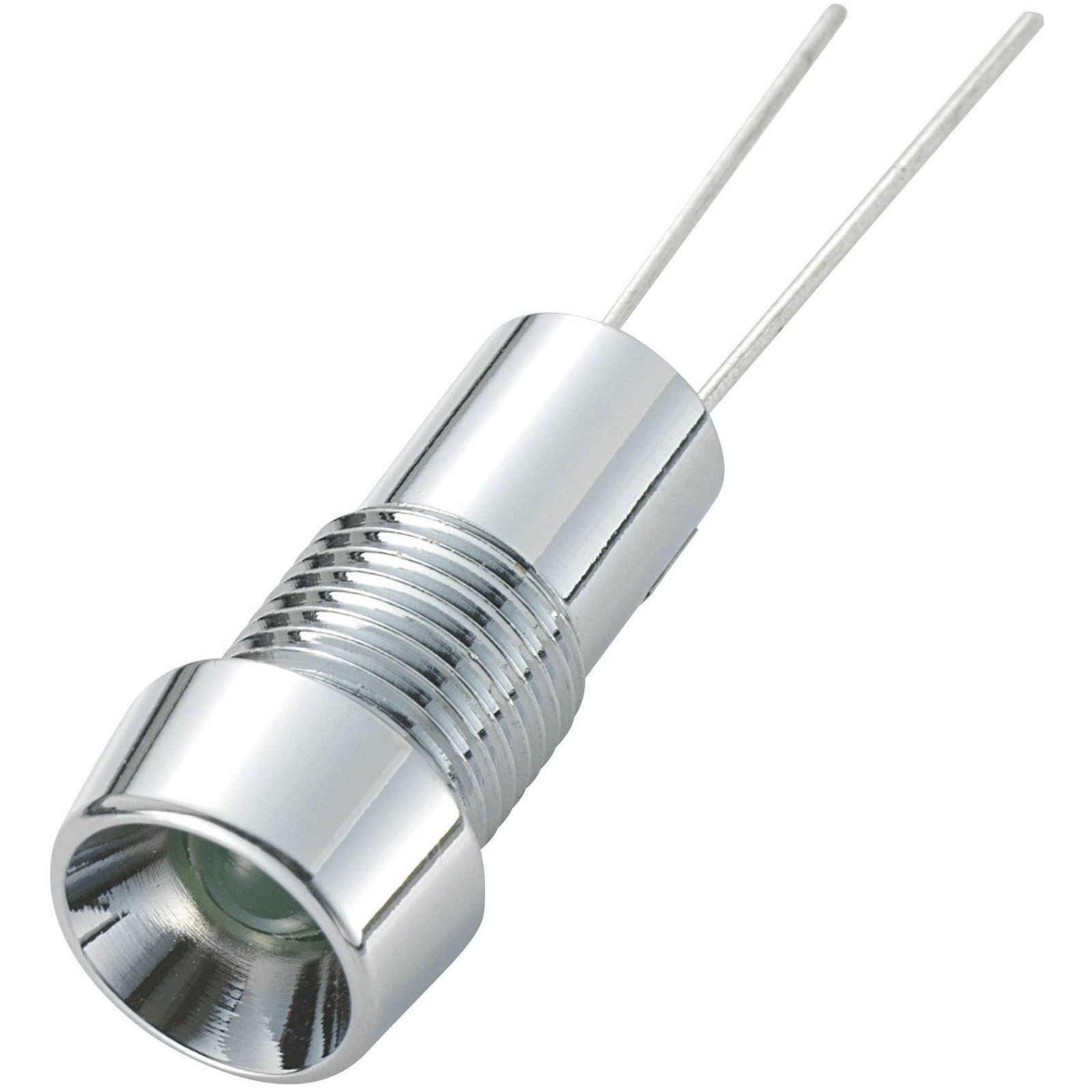

TRU COMPONENTS 1588013 TC-R 9-126 L LED indicator light green 24V DC 4.2mA

TruComponents TC-R 9-126 L is a green LED indicator light operating at 24 V DC and consuming a current of 4.2 mA, identified by the part number TruComponents 1588013. This 4.8mm LED indicator is designed for applications requiring clear visual status indication in electronic and electrical systems. Its robust construction and reliable LED performance make it suitable for integration into control panels, circuit boards, machinery interfaces, and automotive dashboards. The component provides consistent illumination necessary for efficient monitoring, ensuring operational safety and system effectiveness in various engineering environments.

Type	TC-R 9-126 L, green 24 V
Case Colour	Chrome
Colour	Green
Connection	Soldering
Content	1
Forward current I(F)	4.2mA
Light intensity I(V)	8mcd
Material	Brass
Material properties	shiny
Max. temperature	70°C
Min. temperature	-40°C
Mounting Type	Screw
Operating Voltage	24V DC
Product Type	LED indicator light
Radiation angle	30°
Recess diameter	8mm
