TRU COMPONENTS 1588011 TC-R 9-126 L LED indicator light blue 12 V 7.5 mA

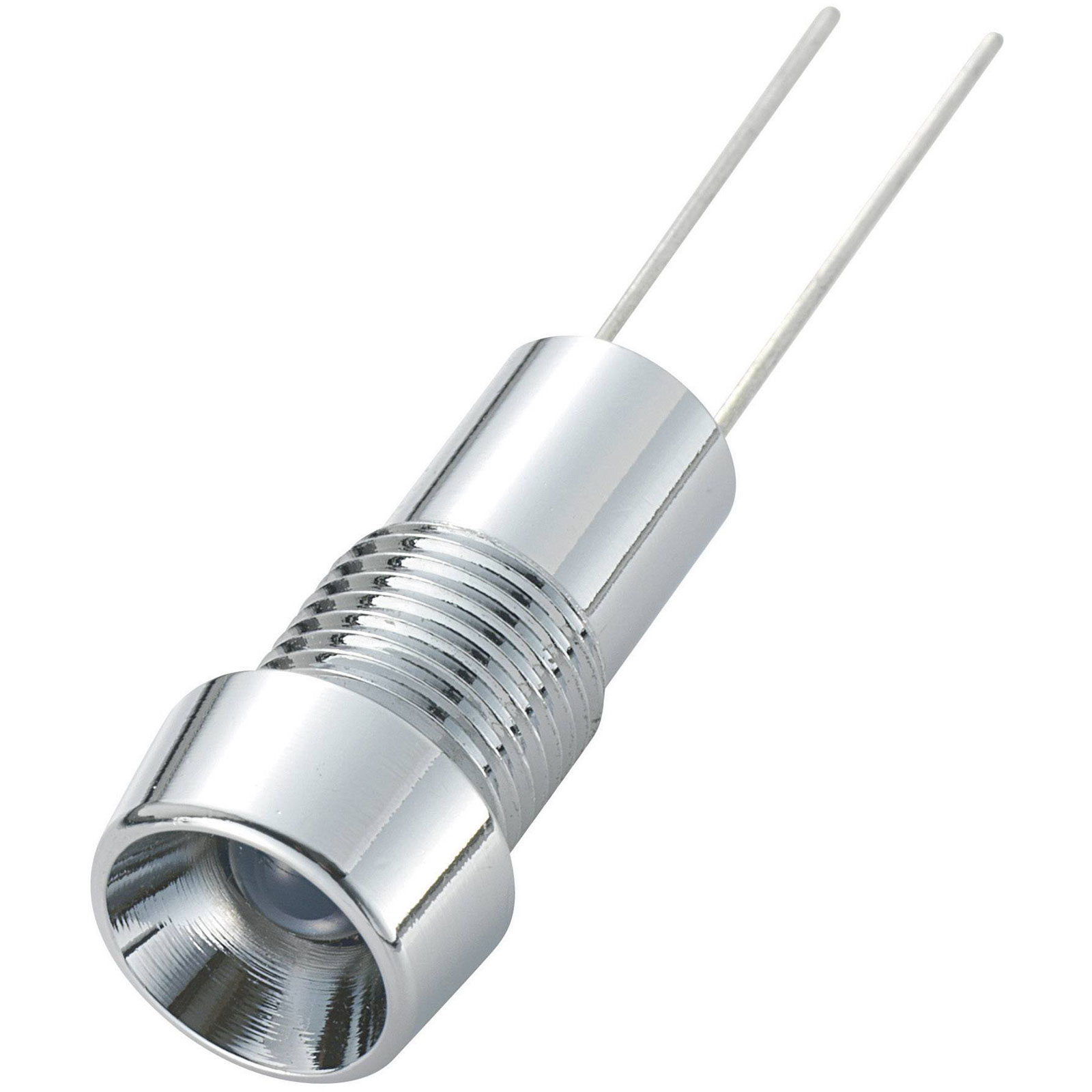

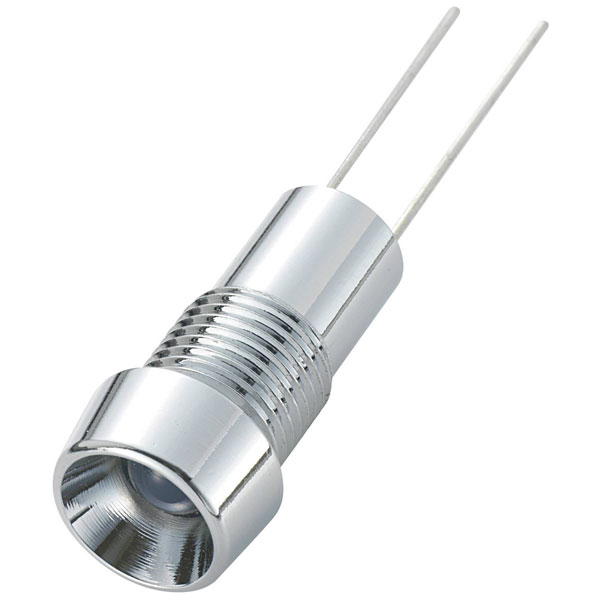

TruComponents 1588011, also referenced as the TruComponents TC-R 9-126 L blue 12 V LED indicator light, is designed as a 4.8mm LED indicator capable of operating at 12 V DC with a current rating of 7.5 mA. This component features a blue LED light, offering reliable visual signals in electrical panels and instrumentation applications. Engineered for optimum performance, it is typically utilised in control systems, status indication, machinery, and various electronic devices requiring clear and consistent signalling. The precise dimensions and electrical characteristics make it suitable for integration into diverse circuit designs where a compact and efficient indicator is necessary.

Type	TC-R 9-126 L blue 12 V
Case Colour	Chrome
Colour	Blue
Connection	Soldering
Content	1
Forward current I(F)	7.5mA
Light intensity I(V)	750mcd
Material	Brass
Material properties	shiny
Max. temperature	70°C
Min. temperature	-40°C
Mounting Type	Screw
Operating Voltage	12V DC
Product Type	LED indicator light
Radiation angle	20°
Recess diameter	8mm
