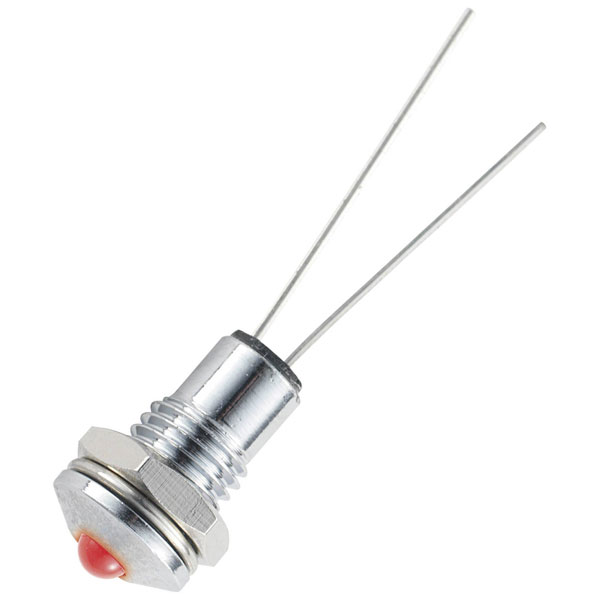

TRU COMPONENTS 1587923 TC-R9-103L-12 LED indicator light Red 2V 20mA Panel

TruComponents presents the TC-R9-103L-12, a red LED indicator light specified under part number 1587923. Designed within the 4.8mm LED indicators category, this component operates at a voltage of 2 V and has a current rating of 20 mA, making it suitable for low-power signalling tasks in various electronic applications. Known for its reliability and efficiency, the LED indicator is commonly utilised in circuit boards, control panels, and equipment displays to provide clear, visual status indications. Its robust design and standardised dimensions ensure ease of integration into existing systems, aligning well with the strict requirements of industrial and consumer electronics.

Type	TC-R9-103L-12 rd
Case Colour	Chrome
Colour	Red
Connection	Soldering
Content	1
Forward current I(F)	20mA
Forward Voltage U(F)	2V
Front panel thickness	max. 3.5mm
Light intensity I(V)	50mcd
Material properties	shiny
Max. temperature	85°C
Min. temperature	-25°C
Mounting Type	Screw
Product Type	LED indicator light
Radiation angle	50°
Recess diameter	6.2mm
