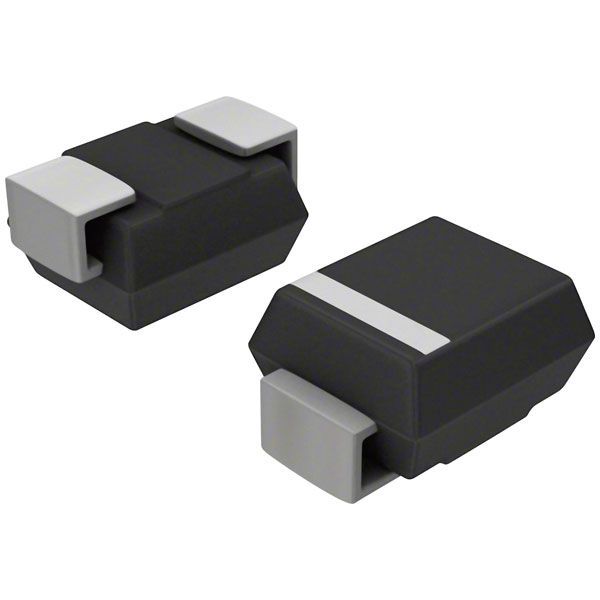

TRU COMPONENTS 1582042 Ultra-fast Si rectifier TC-US1M 1000V 1A DO 214AC

TruComponents 1582042, known alternatively as TruComponents 1582042, is an ultra-fast silicon rectifier rated at 1000 V and 1 A packaged in a DO-214AC enclosure, suitable for applications requiring efficient, high-speed rectification. This product features low forward voltage drop and high reverse voltage capability, making it ideal for use in switching power supplies, free-wheeling diodes, and polarity protection circuits. The compact design ensures space-saving integration into densely packed circuit boards, providing reliable performance for high-frequency rectification demands.

Type	TC-US1M
Enclosure	DO 214AC
Forward current I(F)	1A
Forward voltage reference	1A
Forward Voltage U(F)	1.7V
Maximum Operating Temperature	+150°C
Mounting Type	Surface-mount
Operating temperature (min.)	-50°C
Product Type	Ultra-fast Si rectifier
Reverse leakage Current I(r)	100µA
Reverse leakage current I(r) reference	1000V
Reverse reCovery Time T(rr)	75ns
Reverse Voltage U(R)	1000V
