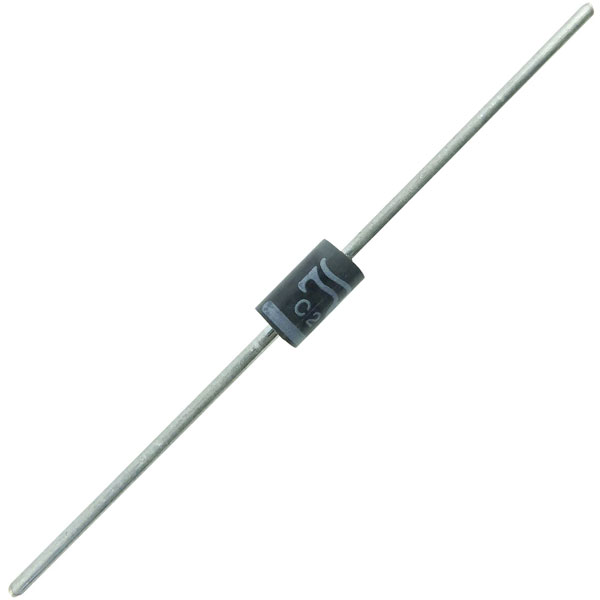

TRU COMPONENTS 1582041 Ultra-fast Si rectifier 1000V 3A DO 201 Standard Diode

TruComponents 1582041 Ultra-fast Si rectifier, a device designed for high efficiency and reliability in power conversion applications. This rectifier supports a voltage rating of 1000 volts and a current rating of 3 amperes, making it suitable for use in power supplies and inverter circuits where rapid switching characteristics are crucial. Encased in a DO-201 standard package, the diode offers excellent performance with low forward voltage drop, which reduces power loss within the system. Typical applications include its integration into switch-mode power supplies, motor drives, and photovoltaic systems, where its robust construction supports stable operation under varied temperature conditions.

Type	TC-UF5408
Enclosure	DO 201
Forward current I(F)	3A
Forward voltage reference	3A
Forward Voltage U(F)	1.7V
Maximum Operating Temperature	+175°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Product Type	Ultra-fast Si rectifier
Reverse leakage Current I(r)	50µA
Reverse leakage current I(r) reference	1000V
Reverse reCovery Time T(rr)	75ns
Reverse Voltage U(R)	1000V
