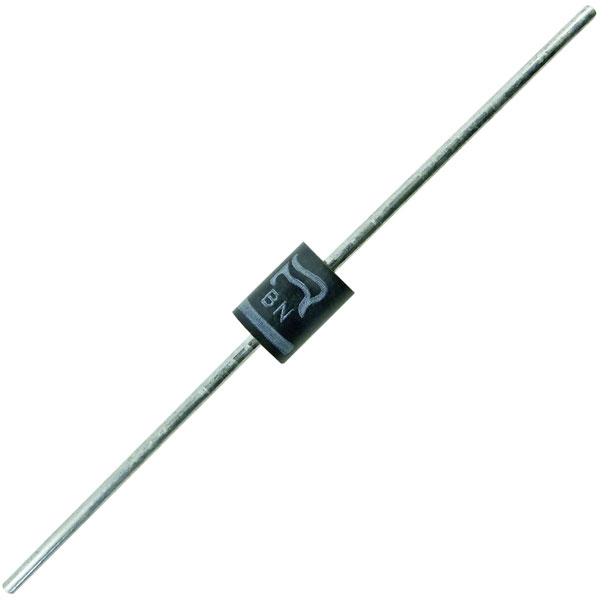

TRU COMPONENTS 1582027 Fast Si rectifier DO 201 600V 5A Standard HF Power Diode

TruComponents 1582027, designated as , is a fast silicon rectifier housed in a DO-201 package, capable of withstanding a reverse voltage of up to 600 volts and supporting a continuous forward current of 5 amperes. This standard high-frequency power diode offers efficient rectification for AC-to-DC conversion, making it a suitable choice for power supply units and voltage regulator circuits. Its robust construction and thermal management capabilities are ideal for use in demanding environments such as industrial machinery, automotive electronics, and consumer electronic devices. The TruComponents 1582027 ensures reliability and performance in circuits requiring efficient current handling and low forward voltage drop.

Type	TC-BY500-600
Enclosure	DO 201
Forward current I(F)	5A
Forward voltage reference	5A
Forward Voltage U(F)	1.3V
Maximum Operating Temperature	+175°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Product Type	Fast Si rectifier
Reverse leakage Current I(r)	10µA
Reverse leakage current I(r) reference	600V
Reverse reCovery Time T(rr)	200ns
Reverse Voltage U(R)	600V
