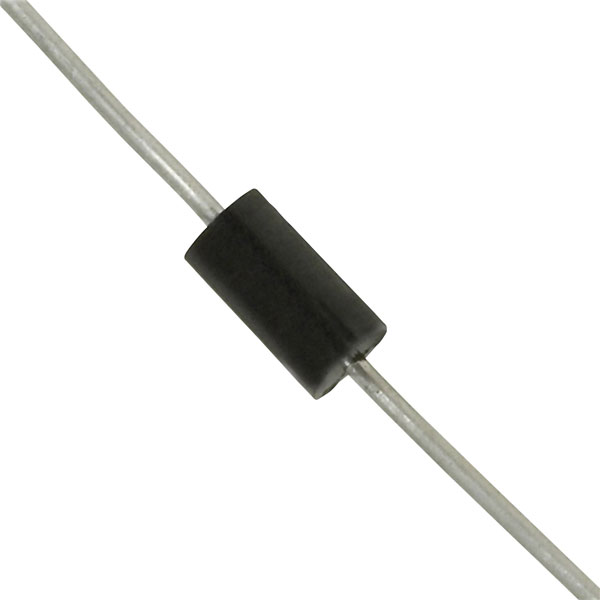

TRU COMPONENTS 1582017 Schottky rectifier 60V single diode DO-15

TRU COMPONENTS 1582017 is a Schottky rectifier diode designed for efficient unidirectional current flow with a reverse voltage capability of up to 60 volts, encapsulated in a DO-15 package. This single diode configuration, identified by the alternative description TC-SB160, utilises Schottky barrier principles to reduce forward voltage drop, providing enhanced switching speed and efficiency compared to conventional PN junction diodes. The low forward voltage and fast recovery times make it particularly suited for applications in power rectification, DC-DC converters, and as a blocking diode in solar panels to prevent reverse current flow. Its compact form factor and reliable performance make it an essential component in various electronic circuits requiring efficient power management.

Type	TC-SB160
Configuration (diode)	Single
Content	1
Enclosure	DO 15
Forward current I(F)	1A
Forward voltage reference	1A
Forward Voltage U(F)	700mV
Mounting Type	Through-hole
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Peak forward surge Current I(FSM)	40A
Product Type	Schottky rectifier
Reverse leakage Current I(r)	500µA
Reverse leakage current I(r) reference	60V
Reverse Voltage U(R)	60V
