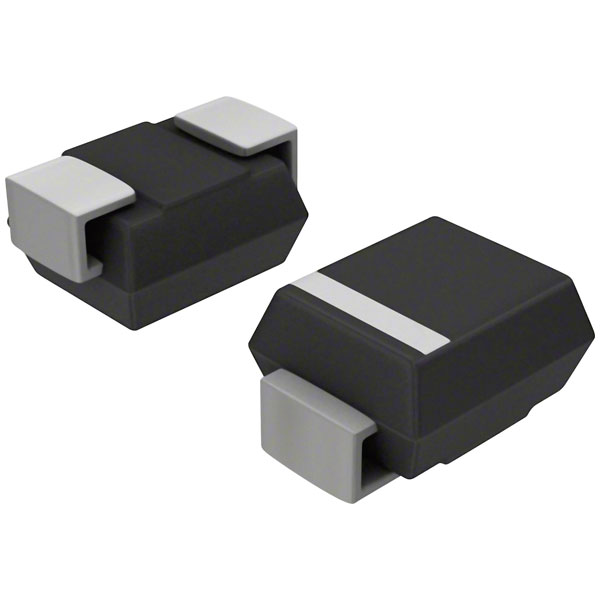

TRU COMPONENTS 1582014 Schottky rectifier DO 214AC 60V Single Schottky Diode

TRU COMPONENTS 1582014 is a highly efficient Schottky rectifier, identified as the TC-SK16, housed in a DO-214AC package. This single Schottky diode features a reverse voltage capability of up to 60 volts and is designed to deliver low forward voltage drop, which is characteristic of Schottky diodes, making it ideal for high-frequency rectification, power supply applications, and as a blocking diode. Built with a PN junction, the TC-SK16 offers superior performance in reducing energy losses and operating at higher frequencies compared to standard diodes, thus enhancing overall circuit efficiency. Its robust construction and performance characteristics make it suitable for use in a variety of electronic devices, power management systems, and other engineering applications that demand reliable and efficient rectification.

Type	TC-SK16
Configuration (diode)	Single
Content	1
Enclosure	DO 214AC
Forward current I(F)	1A
Forward voltage reference	1A
Forward Voltage U(F)	700mV
Mounting Type	Surface-mount
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Peak forward surge Current I(FSM)	30A
Product Type	Schottky rectifier
Reverse leakage Current I(r)	500µA
Reverse leakage current I(r) reference	60V
Reverse Voltage U(R)	60V
