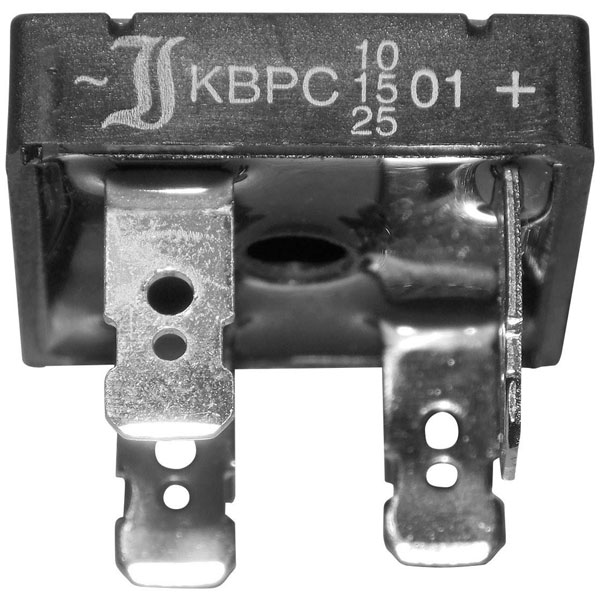

TRU COMPONENTS 1581963 Diode bridge 100V 25A 1-phase Bridge Rectifier

TruComponents TC-KBPC10/15/2501FP is a diode bridge with a part number 1581963, designed for efficient single-phase rectification. This bridge rectifier is engineered to handle a maximum voltage of 100 V with a substantial current capacity of 25 A, making it suitable for converting AC to DC in various power supply applications. The component's robust construction ensures reliability in industrial and consumer electronics, such as battery chargers, motor drives, and lighting systems, where consistent DC output from an AC source is required. Its compatibility with numerous circuits makes it an essential component for engineers focused on power management solutions.

Type	TC-KBPC10/15/2501FP
Configuration (diode)	1-phase
Enclosure	KBPC
Forward current I(F)	25A
Forward voltage reference	12.5A
Forward Voltage U(F)	1.2V
I(FSM) 50Hz	270A
I(FSM) 60Hz	300A
Mounting Type	Enclosure
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Product Type	Diode bridge
Reverse leakage Current I(r)	10µA
Reverse leakage current I(r) reference	100V
U(RRM)	100V
