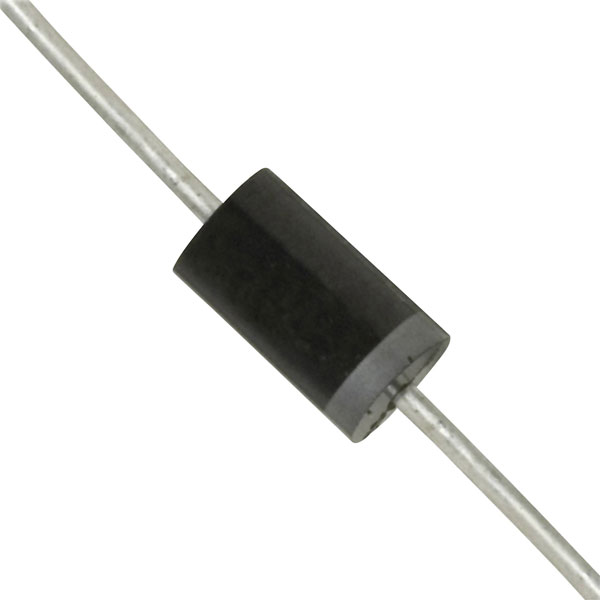

TRU COMPONENTS 1581887 Zener diode 3.3 V DO 35 P(TOT) 502 mW

TRU COMPONENTS 1581887 is a high-performance Zener diode designed to provide precise voltage regulation in a wide range of electronic applications. The diode features a Zener voltage of 3.3 V and a maximum power dissipation of 502 mW, making it suitable for low-power electronic circuits. Its DO-35 enclosure type facilitates easy integration into circuit designs, and the component's robust construction ensures reliability and stable performance. Commonly employed in voltage regulation, surge protection, and reference voltage applications, this Zener diode is an essential component in ensuring the stability and efficiency of electronic systems.

Type	TC-ZPD3.3
Configuration	1 diode
Enclosure	DO 35
Impedance	80Ω
Impedance reference	5mA
Mounting Type	Through-hole mounting
Operating temperature (max.)	+175°C
Operating temperature (min.)	-50°C
Power (max) P(TOT)	502mW
Product Type	Zener diode
Residual reverse leakage current	161mA
U<sub>z</sub> (max.)	3.5V
U<sub>z</sub>(min.)	3.1V
Z Voltage U(Z)	3.3V
