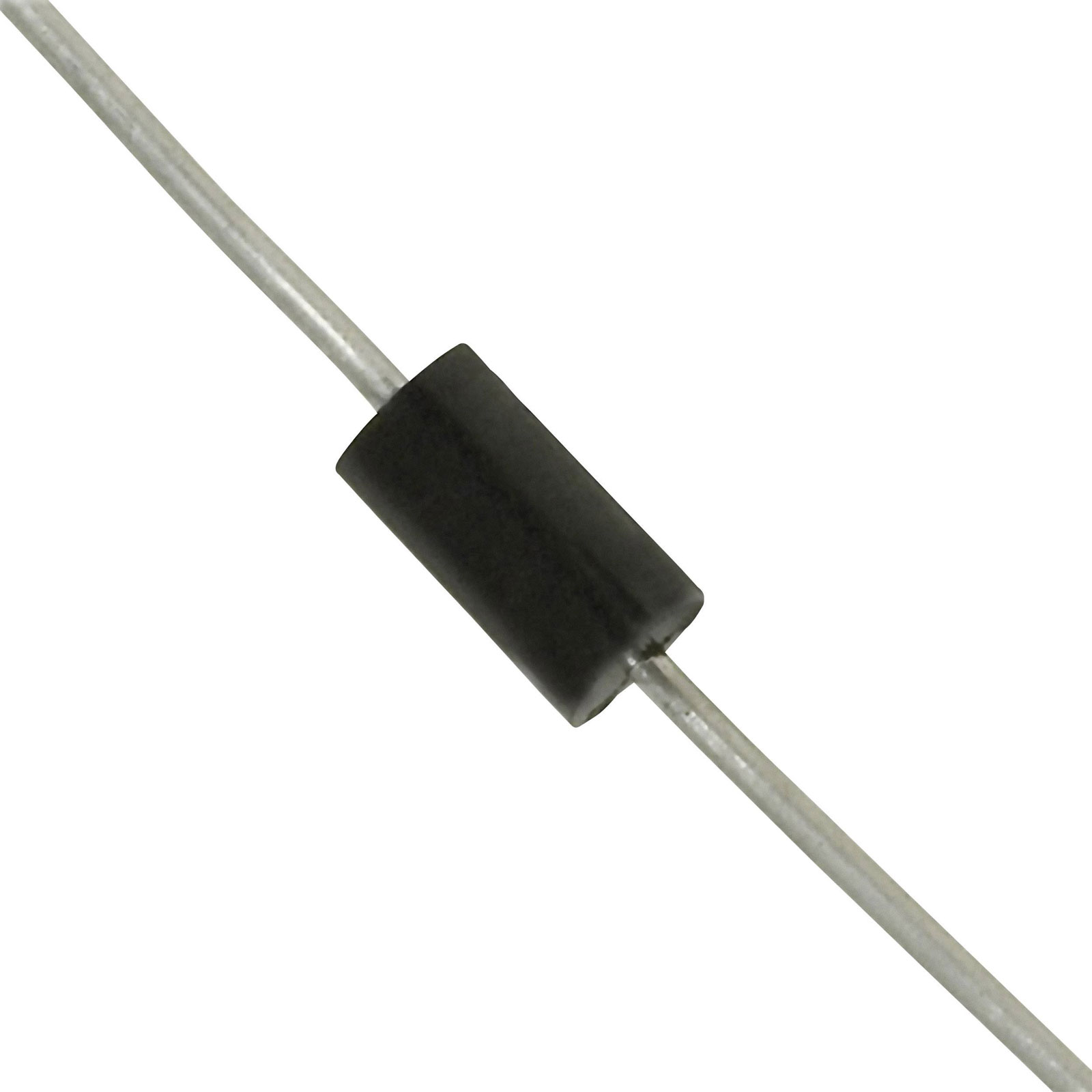

TRU COMPONENTS 1581861 TVS diode DO 15 22.8 V 600 W surge suppression diode

TRU COMPONENTS' part number 1581861, also known as TC-P6KE24CA, is a high-performance transient voltage suppressor (TVS) diode designed to provide reliable overvoltage protection. This semiconductor device, encased in a DO-15 package, is engineered to manage a maximum peak power dissipation of 600 watts, making it essential for safeguarding sensitive electronic circuits from high-energy transients and voltage spikes. With a breakdown voltage of 22.8 volts, the P6KE24CA is widely used in applications such as power supply protection, data lines, and telecommunications equipment, where it ensures the longevity and integrity of electronic components by clamping excessive voltages. As a crucial component in suppression circuits, it combines the versatility of diode technology with robust surge protection capabilities.

Type	TC-P6KE24CA
Package Type	DO-15
Breakdown Voltage U(BR)	22.8V
Channels	1
Mounting Type	Through-hole
Operating temperature (max.)	+175°C
Operating temperature (min.)	-50°C
Peak Current I(pp)	19A
Polarity	Bidirectional
Power (max) P(TOT)	600W
Power line protection	No
Product Type	TVS diode
Reverse Voltage U(R)	20.5V
Terminal Voltage U(CL)	33.2V
