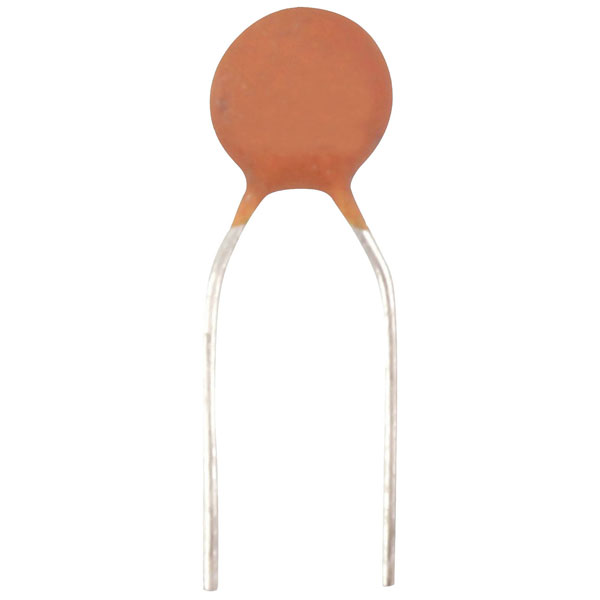

TRU COMPONENTS 1557053 Ceramic disc capacitor Radial lead 2.2 pF 100 V DC 5%

TRU COMPONENTS 1557053 is a ceramic disc capacitor featuring a radial lead design with a capacitance of 2.2 picoFarads, a rated voltage of 100 volts DC, and a tolerance of 5%. This capacitor, with dimensions of 3.5 mm in diameter by 4 mm in height, is suited for applications requiring stability and reliability, such as filtering and timing circuits in electronic devices. Ceramic capacitors like this one are commonly used in RF circuits and as part of resonant circuits due to their low inductance and stability over temperature. The TRU COMPONENTS 1557053 is designed to meet stringent engineering requirements where precision capacitance and durability are needed.

Capacity	2.2pF
Content	1
CS	2.54mm
Diameter	3.5mm
Dimensions	(Ø x H) 3.5 mm x 4 mm
Height	4mm
Material	Ceramic
Material properties	NPO
Max. temperature	+85°C
Min. temperature	-55°C
Nominal Voltage	100V DC
Product Type	Ceramic disc capacitor
Tolerance ±	5%
