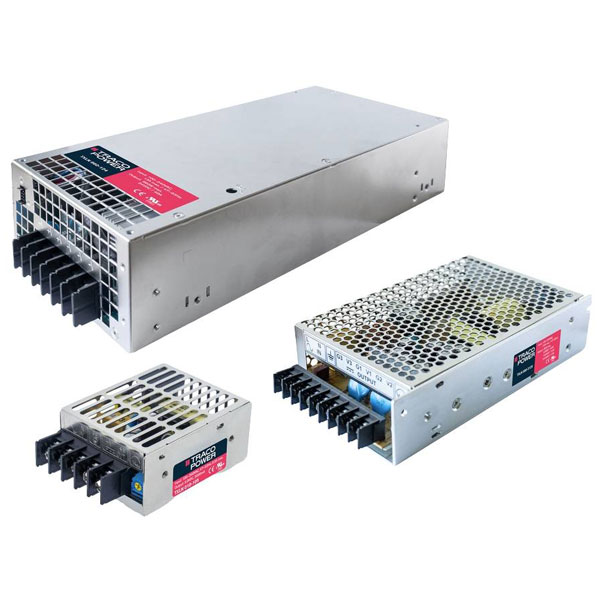

TracoPower TXLN 320-124 PSU Module 24V DC 13.4A 320W Enclosed

TracoPower
Order Code:

07-8449

Brand: TracoPower MPN: TXLN 320-124
Qty Unit Price (Ex VAT)
1+ £102.47
5+ £99.40
10+ £96.32
25+ £92.22
50+ £88.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

TracoPower's TXLN 320-124 is a robust AC/DC PSU module that delivers 24 V DC at 13.4 A, with a total power of 320 W. It is ideal for PCB mount applications, featuring solder lugs for secure connections. This printed circuit board power supply unit is used in industrial and consumer electronics requiring reliable power conversion.
Connection Screw terminal
Dim (L x W x H) 222.2 x 115.0 x 30.0 mm
Height 30.0mm
Input voltage (max.) 264V AC
Length 222.2mm
Max. operating temperature (derating) 50°C
Max. output current 13.4A
Min. input voltage 85V AC
Misc Attribute 2 closed
MTBF 175900h
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 13.4A
Output current (min.) 0mA
Output voltage (max.) 24V DC
Output voltage (min.) 24V DC
PFC Yes
Power 320W
Type AC/DC PSU module (+ enclosure)
Width 115.0mm
