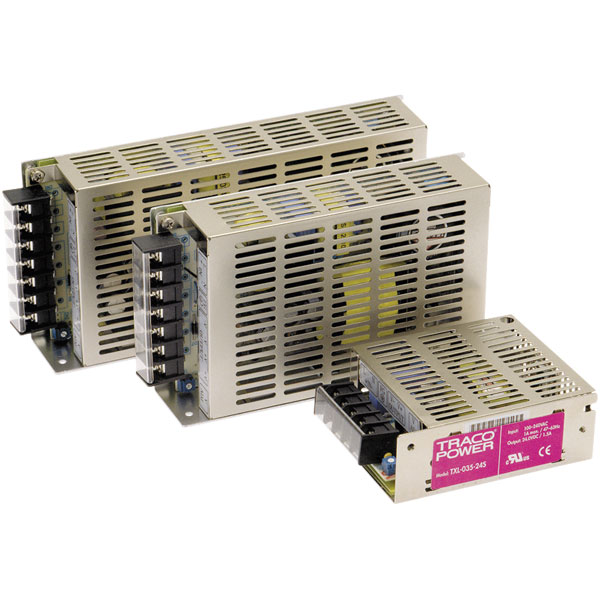

TracoPower TXL Series Enclosed Dual and Triple Output Switch Mode Power Supplies

TracoPower Brand: TracoPower
<P>The TracoPower TXL series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment.</P><P>These dual and triple output power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).</P>
  • Compact metal case with screw terminal block
  • Dual and triple output models with isolated outputs
  • Universal input 85 to 264V AC
  • EMI/EMC compliance with EN 61000-6-3 and EN 61000-6-1
  • Compliance to EN 61000-3-2 (PFC)
  • Short circuit and overvoltage protection
  • International safety approvals
  • 3-year product warranty
Description Image Product Buy Qty Pricing (Ex VAT) Output Current Max. Output Current Min. Output Voltage Min. Dimensions Input Connection Number of Outputs Output Connectors Output Voltage Max. Power Rating Supply Voltage Range Temperature Range
TracoPower TXL 035-0512D 35W 5V 12V Dual Output Switch Mode Power Supply
TracoPower TXL 035-0512D 35W 5V 12V Dual Output Switch Mode Power Supply
Standard range
Order code: 51-5862
MPN: TXL 035-0512D

2 in Stock, despatched in 4 days
1+ £43.08
5+ £40.17
10+ £38.93
4A 1.5A 5V DC (L x W x H) 99 x 82 x 35mm Screw terminals 2 Screw terminals 12V DC 35W 85 to 264 / 120 to 370V -10 to +70°C
TracoPower TXL 035-1212D 35W 12V Dual Output Switch Mode Power Supply
TracoPower TXL 035-1212D 35W 12V Dual Output Switch Mode Power Supply
Standard range
Order code: 51-5864
MPN: TXL 035-1212D

4 in Stock, despatched in 4 days
1+ £49.80
1.5A N/A -12V DC (L x W x H) 99 x 82 x 35mm Screw terminals 2 Screw terminals 12V DC 35W 85 to 264 / 120 to 370V -10 to +70°C
Order codePowerOutput
51-586235W5V 12V
51-586435W12V 12V
51-587360W5V 12V
51-587460W5V 24V
51-5868100W5V 12V
51-5869100W5V 24V
51-587660W5V +12V -12V
51-586660W5V +15V -15V
51-5870100W5V +12V -12V
51-5871100W5V +15V -15V
51-5872100W5V +12V +24V
