TracoPower TSP 360-148 EX Rail Mounted PSU 7500mA 360W Single Output

TracoPower
Extended range
Order Code:

07-8387

Brand: TracoPower MPN: TSP 360-148 EX
Qty Was Unit Price (Ex VAT)
1+ £249.69   £246.44
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 months

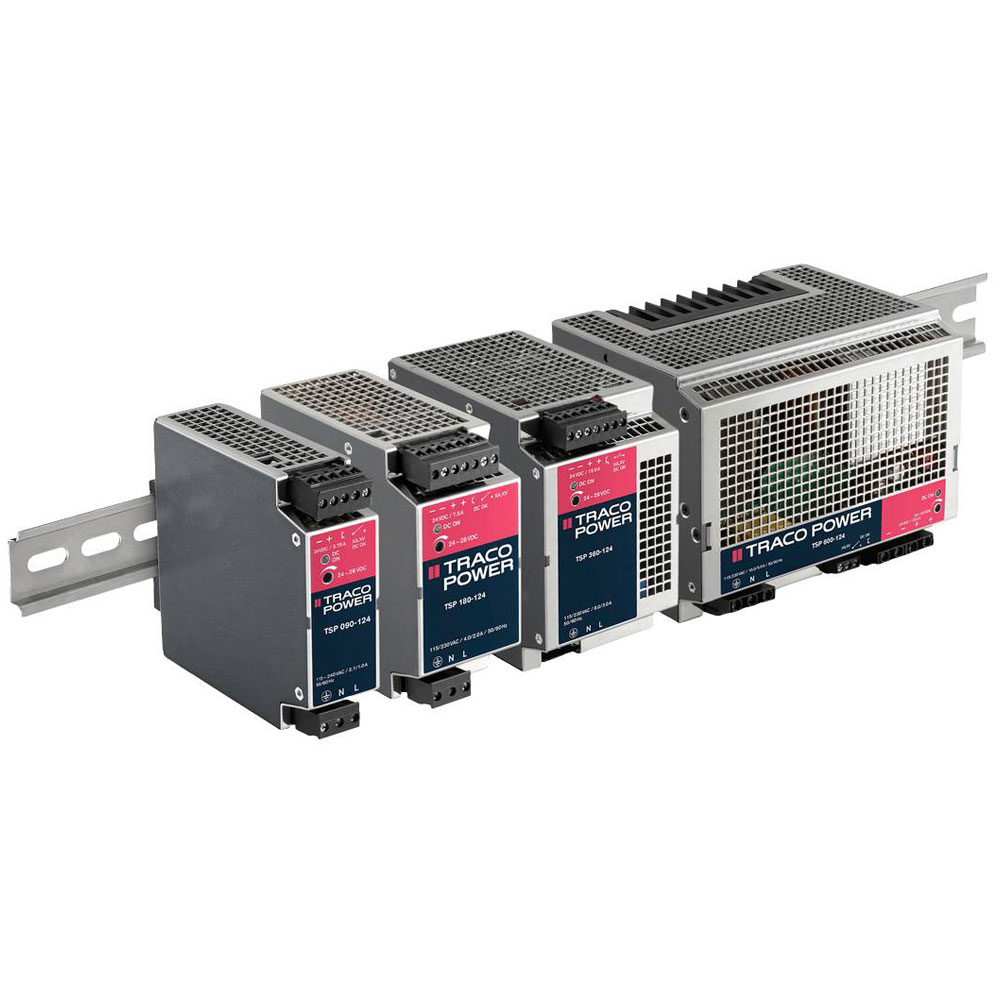

The TracoPower TSP 360-148 EX is a rail mounted PSU (DIN) providing a single output of 7500 mA at 360 W. This industrial power supply unit is designed for easy installation on DIN rails, ensuring efficient power delivery in demanding environments. It is ideal for use in industrial applications requiring reliable and robust power management.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 130.0 x 80.0 x 125.0 mm
Height 125.0mm
Input voltage (max.) 264V AC
Length 130.0mm
Manufacturer part # TSP 360-148 EX
Max. output current 7500mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 40°C
Min. temperature -25°C
Misc Attribute TSP 360-148 EX
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 7.5A
Output voltage (max.) +56.0V DC
Output voltage (min.) +48.0V DC
Power 360W
Weight 1100g
Width 80.0mm
