TracoPower TMPM 04105 4W Encapsulated PCB Mount Power Supply 5V DC 800mA

TracoPower
Order Code:

57-5237

Brand: TracoPower MPN: TMPM 04105

Discontinued


These ultra compact AC/DC power modules from the TracoPower TMPM series are fully encapsulated and offer an effective solution for space critical applications involving polluted or dusty environments.


  • Connection: Soldering pins

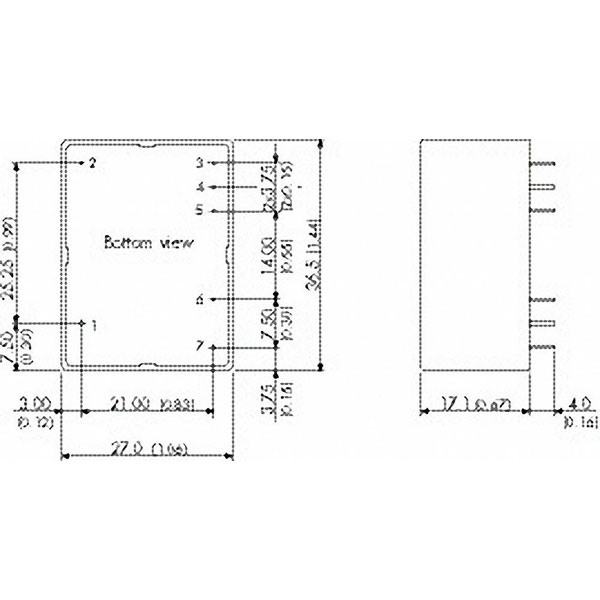

  • Dimensions, height: 17.1mm
  • Dimensions, length: 36.2mm
  • Dimensions, width: 27mm
  • Input voltage range: 90 - 264V AC/120 - 370V DC
  • Max. temperature: 60 °C
  • Min. temperature: -25 °C
  • No. of outputs: 1
  • Output current 1: 800mA
  • Output voltage 1: 5V DC
  • Power: 4W
  • Manufacturer's part TMPM 04105
  • Weight: 26 g
Output Voltage 5V
Input Voltage Range 90 to 264/100 to 375V
Power Rating 4W
Output Current 800mA
Number of Outputs 1
Mounting Style PCB
Temperature Range -25 to +60°C
