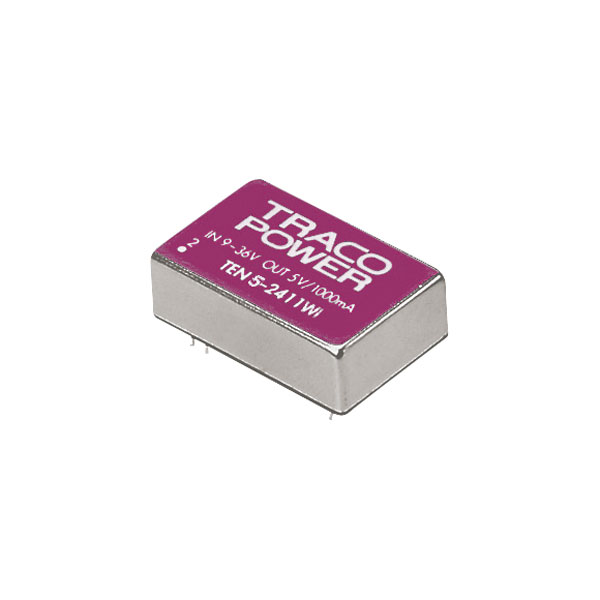

TracoPower TEN Series 6W DC-DC Converters - Single Output

TracoPower Brand: TracoPower

The TracoPower 6W DC-DC Converters are modules with a wide input range of 2:1.

State of the art SMD-technology guarantees high reliability and good cost/performance ratio, while high efficiency allows an operating temperature range of –40°C to +85°C. I/O-isolation of 1,500 VDC together with conducted noise compliance to EN 55022-A and FCC, level A makes these converters ideal for a wide range of applications in communications, mobile battery powered equipments and industrial systems.

  • Wide 2:1 input range
  • Full SMD-design
  • High efficiency up to 86%
  • Extended operating temperature range –40°C to 85°C
  • I/O isolation 1'500 VDC
  • Indefinite short circuit protection
  • Input filter to meet EN 55022, Class A and FCC, level A without external components
  • Shielded metal case with insulated baseplate
  • 24-pin DIP with industry standard pinout
  • High reliability, MTBF >1 Mio. h
  • 3-year manufacturer's warranty
    • Description Image Product Buy Pricing (Ex VAT) Output Current Max Output Voltage Max Power Rating Mounting Style Number of Outputs Supply Voltage Range Temperature Range
    TracoPower TEN 5-1211 Single Output DC-DC Converter 6W
    TracoPower TEN 5-1211 Single Output DC-DC Converter 6W
    Extended range
    Order code: 51-7464
    MPN: TEN 5-1211

    Available to back orderBack-order availability date - 28/12/2025
    1+ £19.96
    5+ £19.35
    10+ £18.76
    Price per unit Ex VAT     		1000mA 5V 6W DIP-24 1 9 to 18V -40 to +85°C
    TracoPower TEN 5-1212 Single Output DC-DC Converter 6W
    TracoPower TEN 5-1212 Single Output DC-DC Converter 6W
    Extended range
    Order code: 51-7465
    MPN: TEN 5-1212

    Available to back orderBack-order availability date - 28/12/2025
    1+ £21.71
    Price per unit Ex VAT     		500mA 12V 6W DIP-24 1 9 to 18V -40 to +85°C
    Order codeMftrs part no.Input voltageOutput voltageOutput currentEfficiency
    51-7464TEN 5-12119 to 18V DC5V1A81%
    51-7465TEN 5-12129 to 18V DC12V0.5A84%
    51-7469TEN 5-241218 to 36V DC12V0.5A86%
    51-6640TEN 5-4823WI18 to 75V DC±15V±0.2A82%
