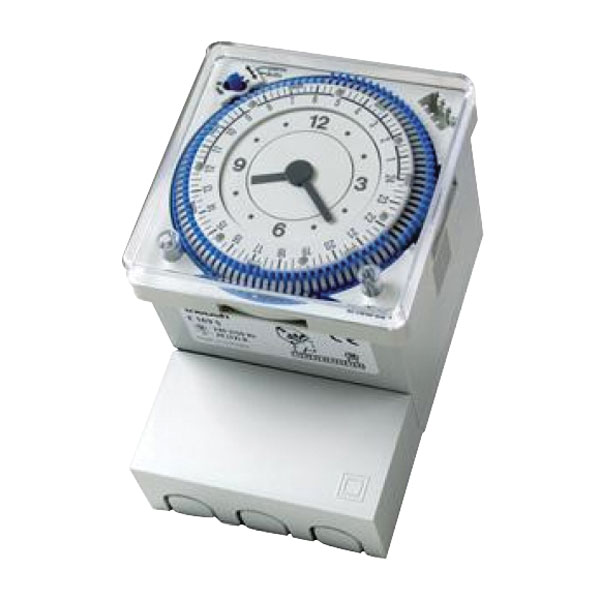

Timeguard E169S 24 Hour 20 Amp Electro Mechanical Time Controller

Timeguard
Order Code:

23-9328

Brand: Timeguard MPN: E169S

Discontinued


The Timeguard E169S 24 Hour 20A Electro Mechanical Time Controller, controls electrical equipment up to 20A resistive. Easily set by the captive segment setting dial, the unit has a maximum of 48 ON and OFF programmes per day.


  • 20(12)A (4.6kW) loading
  • 72 × 72mm plug-in base surface mount
  • Captive segment dial
  • Optional panel mount (clip included)
  • Synchronous motor driven
  • Time display for ease of operation
  • Manual override to next programme change and permanent ON/OFF
  • 15 minute minimum switching interval which can be increased in 15 minute steps
  • Tamper proof transparent cover
  • Controls electrical appliances (resistive loads) up to 4.6kW
  • 12 amp inductive rating
  • DIN rail adaptor available. Part No. 907-0-071
  • Manufacturers part no. Timeguard E169S
Type 24 hour time switch
Timer Mode 24 hour
Current Rating 20A
Depth 69mm
Height 72mm
Length 104mm
Number of Gangs 1
Operating Temperature Range -10 to +40°C
Setting Type Segment
Voltage Rating 230V
