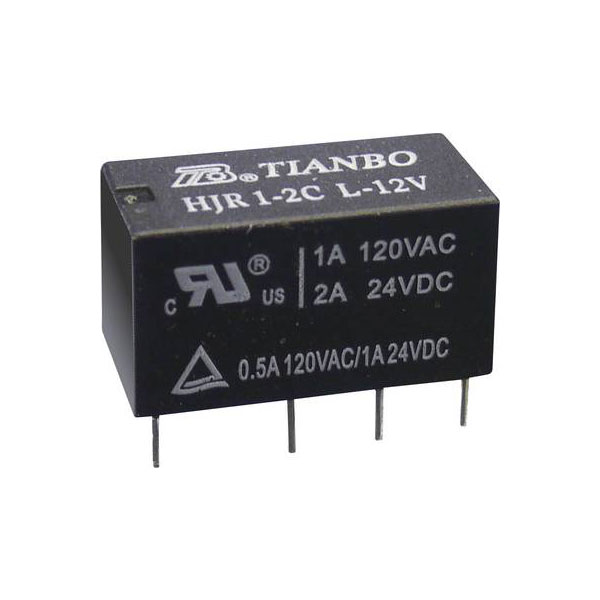

Tianbo Electronics HJR1-2C-L-12VDC PCB Relay 12V 2A 2 Changeovers

Tianbo Electronics
Order Code:

10-8116

Brand: Tianbo Electronics MPN: HJR1-2C-L-12VDC EAN-13: 2050001760722
Qty Unit Price (Ex VAT)
10+ £0.795
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
340 in stock, despatched in 4 working days

The Tianbo Electronics HJR1-2C-L-12VDC PCB relay is a compact component featuring a 12 V DC coil voltage and a 2 A current rating with 2 change-over contacts. It is primarily used in printed circuit boards and suitable for applications requiring reliable switching in low-power circuits. This mini relay is common in consumer electronics and industrial control systems.
Coil Voltage 12V DC
Contact Configuration 2CO (DPDT)
Switching Current 2A
Coil Resistance 720Ω
Connection Solder pins
Contact Material AgNi+Au
Control Mode monostable, 1 coil
Dimensions (L x W x H) 20.5 x 10 x 11.8 mm
Height 11.8mm
Length 20.5mm
Max. pick-up Voltage 20.4V DC
Max. temperature +85°C
Min. pick-up Voltage 9V DC
Minimum Temperature -30°C
Mounting Type PCB
Type PCB relay
Width 10mm
