Theben 6100130 TR610 top3 Digital Timer 230V DIN Rail Week Program

theben
Extended range
Order Code:

10-7996

Brand: theben MPN: 6100130 EAN-13: 4003468610299
Qty Unit Price (Ex VAT)
1+ £103.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

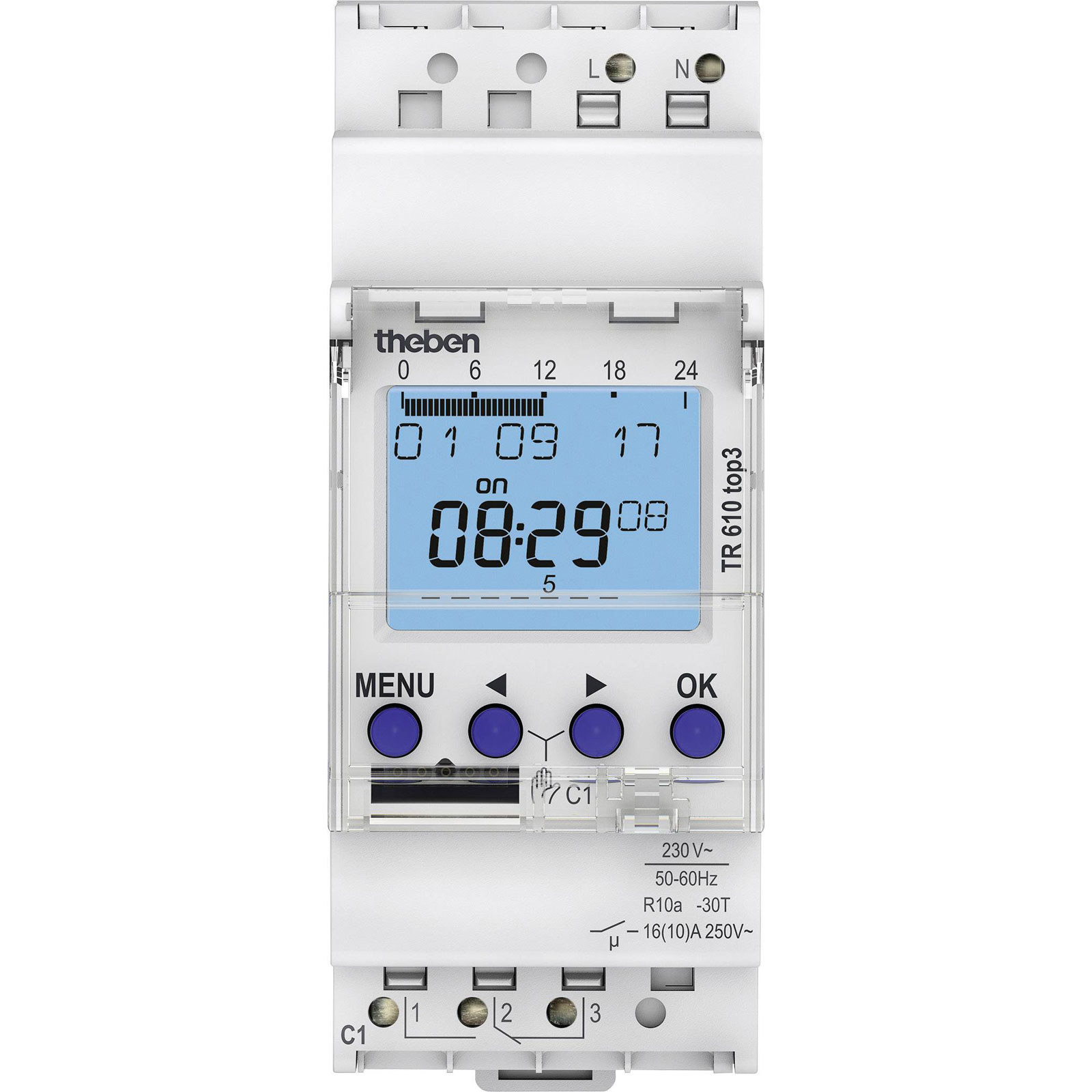

Theben's 6100130 TR610 top3 is a DIN rail mount timer offering week settings with 230 V AC power. This multifunction relay is commonly used as a delay switch or staircase light switch. It is ideal for applications requiring precise time control, such as lighting and automated systems.
Type DIN rail mount timer
Connection Screw terminal
Contact type 1 change-over
Depth 69.2mm
Dim (W x H x D) 35.8 x 128.2 x 69.2 mm
Height 128.2mm
IP rating IP20
Max. temperature +55°C
Min. temperature -30°C
Misc Attribute 1 Week settings
Misc Attribute 2 TR610 top3
No. of switching intervals 56
Operating voltage 230V AC
Power reserve 10Years
Switching current (max.) 16A
Switching voltage (max.) 250V AC
Width 35.8mm
