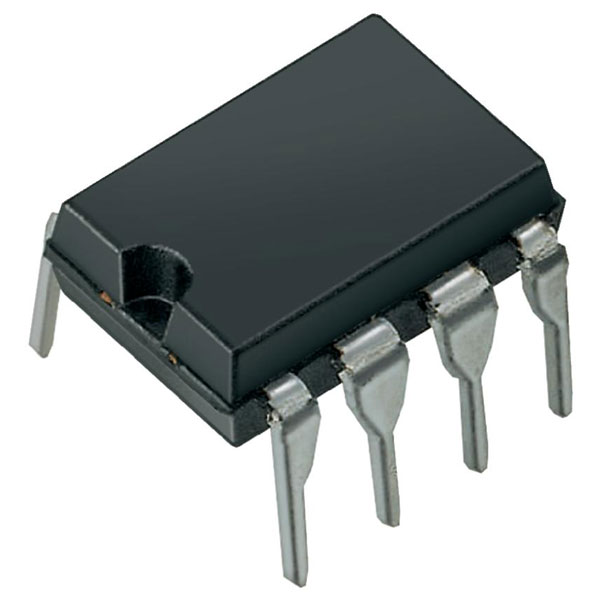

Texas Instruments SN75176BP Linear IC Differential Bus-Transceiver DIP8

This is the Texas Instruments SN75176BP differential bus transceiver. It combines a tri-state differential line driver and a differential input line receiver operating from a single 5VDC supply. The tri-state outputs make it ideal in multi-point applications and the high output drive current makes it suitable on long bus lines in noisy environments. Meets or exceeds the requirements of ANSI standards TIA/EIA-422-B and TIA/EIA-485-A and ITU recommendations V.11 and X.27.

• Tri-state driver outputs
• Seperate driver and receiver enables
• Thermally protected
• ±60mA driver output capability
• 12kΩ receiver input impedance
• ±200 mV receiver input sensitivity
• DIL-8 package
