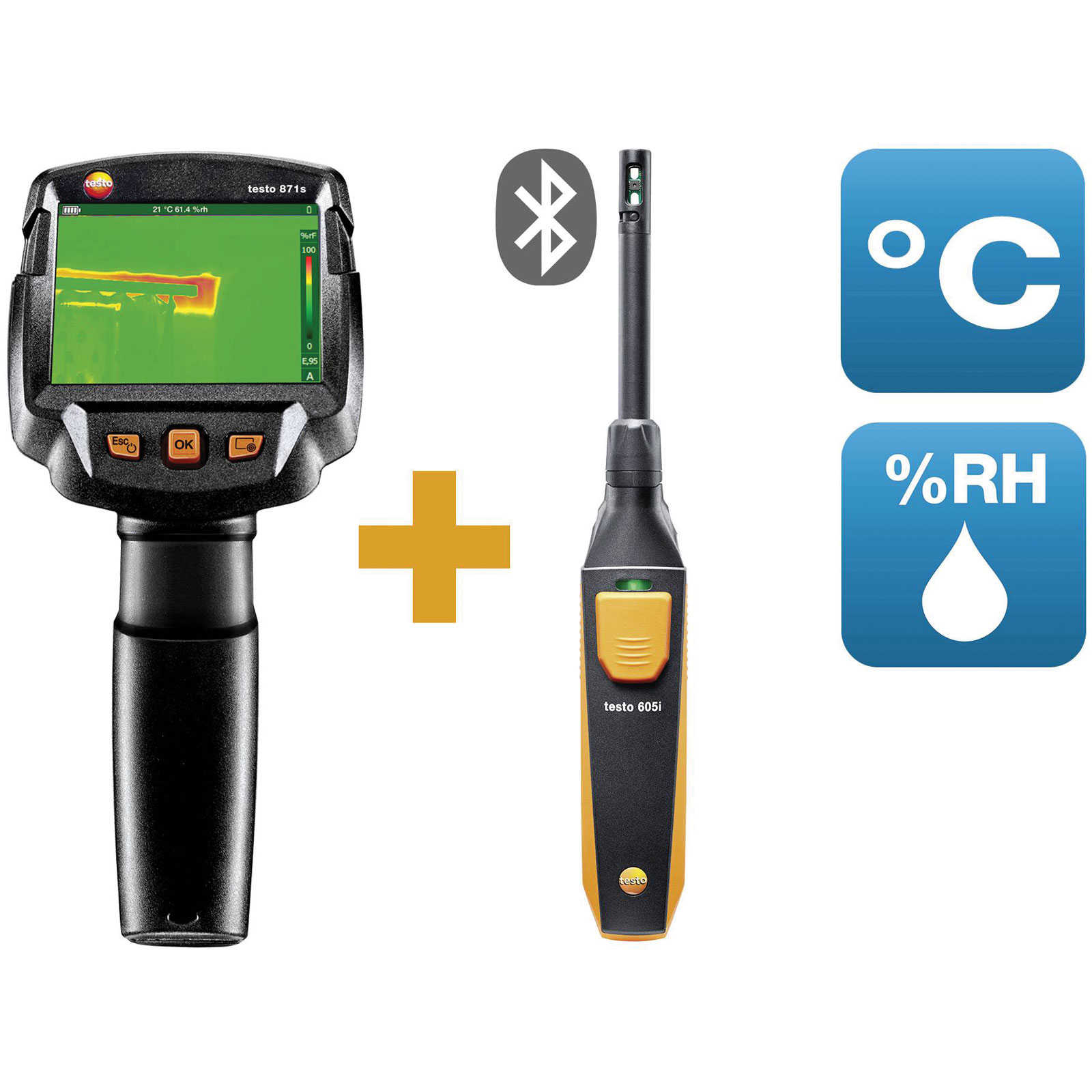

Testo 0560 8717 Testo 871s Baudiagnose-Set IR camera

Use the smart testo 871s mould set to detect mould-prone areas in buildings quickly and easily. The testo 605i thermo-hygrometer included in the set transmits the room parameters via Bluetooth® to the infrared camera testo 871s. Areas at risk of mould are shown on the camera display (according to the traffic light principle) orange or red. The infrared camera convinces along with its professional measuring performance with very good image quality, a thermal sensitivity of 0.08 °C and simple use. In a robust case the equipment can be transported comfortably and securely.

Type	Baudiagnose-Set
Accuracy ± °C	2°C
Basic accuracy	2%
Bolometer array	240 x 180 Pixel
Calibrated to	Manufacturer's standards (with certificate)
Dim	(L x W x H) 219 x 96 x 95 mm
Display	TFT 8.9cm
Display resolution	240 x 180 Pixel
Emission level (max.)	1
Emission level (min.)	0.01
Focus	Fixed-focus
Frame rate	9Hz
Geometric resolution (IFOV)	2.6mrad
Height	95mm
IP rating	IP54
Length	219mm
Min. focusing distance	0.5m
Misc Attribute	871s Baudiagnose-Set
Optics	35° x 26°
Power supply (details)	5V DC
Temperature reading range	-30 up to +650 °C
Temperature reading range (max.)	+650°C
Temperature reading range (min.)	-30°C
Temperature resolution	0.08°C
Thermal sensitivity	80 mK
Weight	510g
Width	96mm
