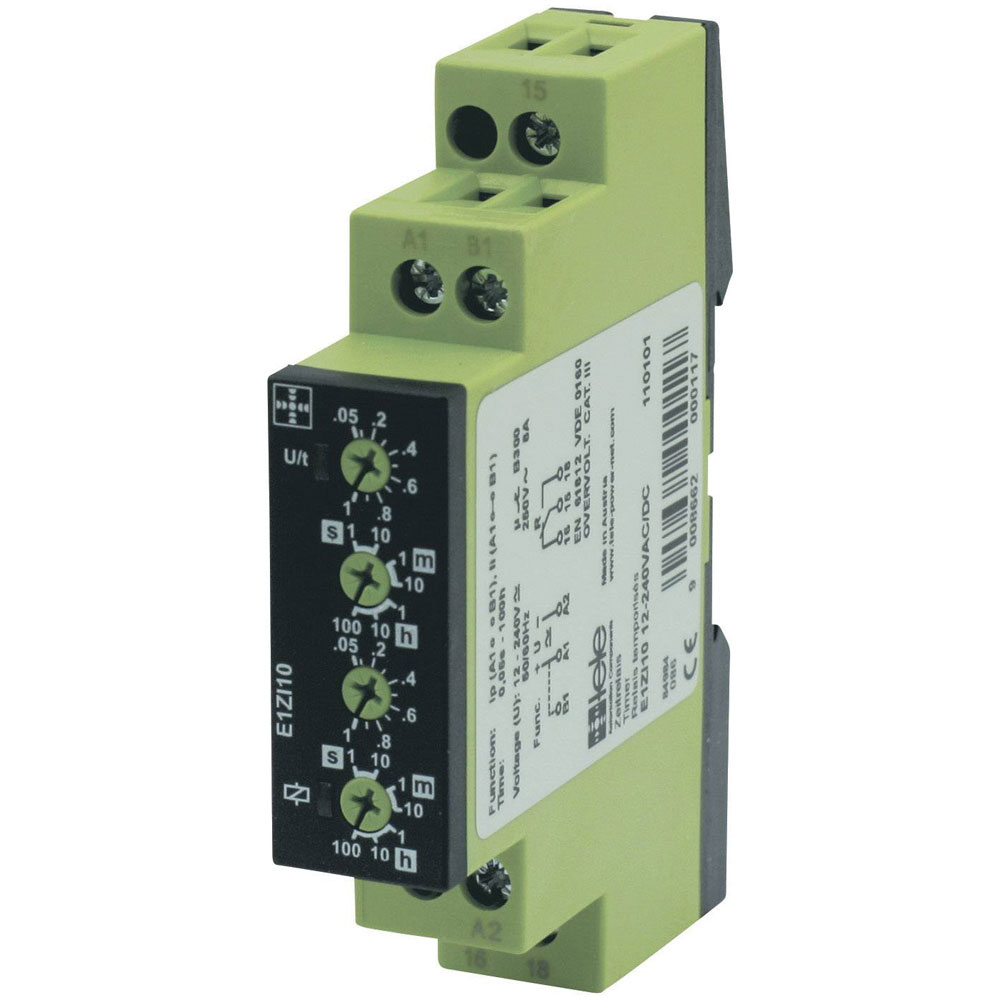

tele 110101 E1ZI10 Multifunction Relay 12-240V 7 Ranges 1 Change-Over

The tele multifunction time relay, model 110101, operates on a wide voltage range of 12-240 VAC/DC. It features a single change-over contact and is housed in a compact 17.5x87x63mm DIN rail mount design. Typical applications include time-modulated processes such as staircase lighting and delayed switch-off functions.

Type	TDR
Ambient temperature	-25 - +55°C
Connection	Screw terminal
Contact Type	1 change-over
Depth	63mm
Dim	(W x H x D) 17.5 x 87 x 63 mm
Height	87mm
IP Rating	IP40, IP20
Maximum Switching Load	2000VA
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	E1ZI10 12-240VAC/DC
Misc Attribute 2	Multifunction
Misc Attribute 3	Clock
Switching Capacity	8 A/250V AC
Switching current (max.)	8A
Switching voltage (max.)	250V AC
Width	17.5mm
