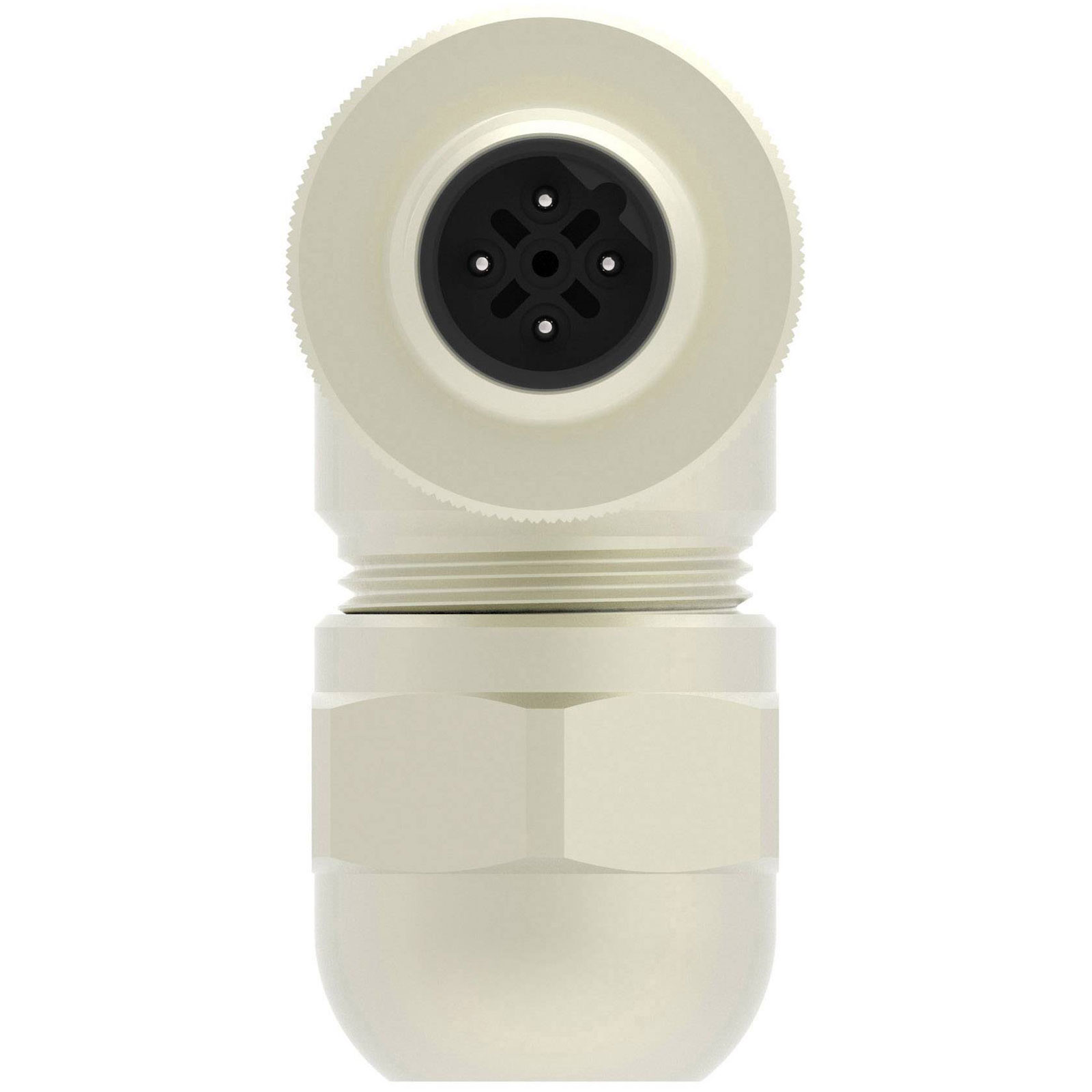

TE Connectivity T4113411041-000 Sensor/actuator Connector M12 Plug 4-Pin

The TE Connectivity T4113411041-000 is a right-angle M12 plug designed for sensor and actuator connections, featuring four pins. It is typically used in industrial automation applications to provide secure and reliable connections. The connector ensures robust performance in demanding environments, supporting effective signal transmission.

Type	Plug, right angle
Number of Contacts	4
Connector Size	M12
Gender	Plug
Assembly Type	Electrical Connector
Circuit Application	Signal
Circular Connector Contact Type	Pin
Circular Connector Insulation Material Type	Polyamide 66 GF25
Circular Connector Shell Size	20
Circular Connector Type	Plug
Coding	B
Colour	Silver
Connector & Contact Terminates To	Wire & Cable
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector Product Type	Connector Assembly
Connector standard	Sensor connector
Connector System	Cable-to-Cable
Contact Current Rating (Max)	4
Contact Material	Brass nickel plated
Contacts Preloaded	Yes
Current Rating	4A
Durability rating	100
Factory Installed Backshell	With
Hermetically Sealed	Yes
IP Rating	IP67
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention Type	Threaded Coupling
max. cross section	0.82mm²
Max. temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	250V
Number of Positions	4
Number of Power Positions	0
Number of Signal Positions	4
Operating Temperature Range	-40 – 185
Operating Voltage	250
Polarization Code	B
Primary Product colour	Black
Reverse Gender	Yes
ROHS	Yes with Exemption
RoHS Version	2011/65/EU, 2015/863
Sealable	Yes
Shell Base Material	Copper Alloy
Shell Plating Material	Nickel
Shell Type	Metal
Shielded	Yes
Thread type (wiring and installation)	PG7
Thread type connection side	M12
UL Flammability Rating	UL 94HB
Wire Gauge (mm²)	0.20mm²
Wire Size	18 – 24
