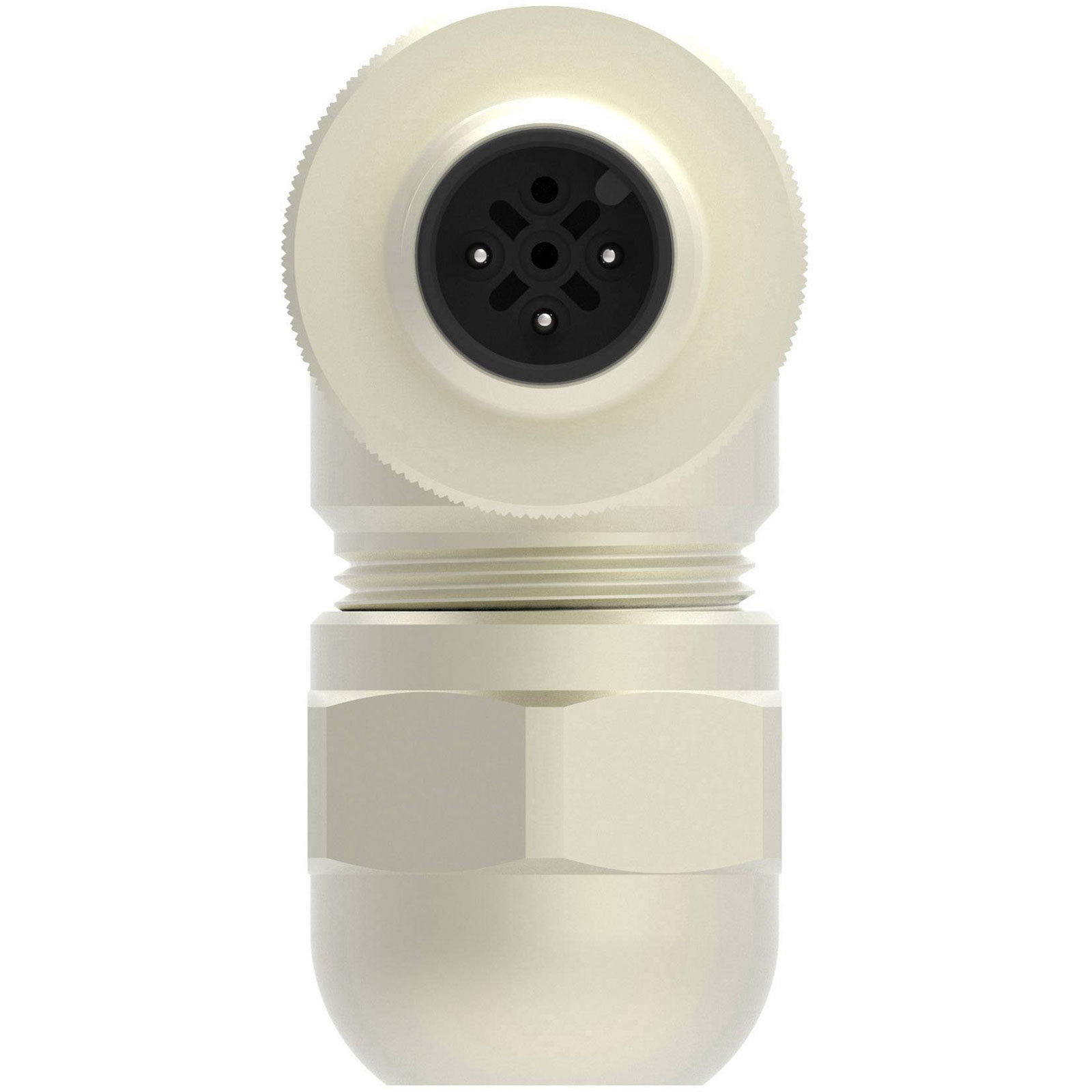

TE Connectivity T4113012031-000 M12 Plug Right Angle 3 Pins

TE Connectivity
Order Code:

07-5547

Brand: TE Connectivity MPN: T4113012031-000 EAN-13: 2050005528595
Qty Unit Price (Ex VAT)
1+ £9.85
5+ £9.57
10+ £9.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

TE Connectivity's T4113012031-000 is an M12 plug sensor/actuator connector featuring a right-angle design with 3 pins. It is typically used in industrial applications for reliable and robust sensor or actuator connections. The connector is known for its durable construction and secure electrical interfacing in automation systems.
Type Plug, right angle
Number of Contacts 3
Assembly Type Electrical Connector
Circuit Application Signal
Circular Connector Contact Type Pin
Circular Connector Insulation Material Type Polyamide 66 GF25
Circular Connector Shell Size 20
Circular Connector Type Plug
Coding A
Colour Silver
Connector & Contact Terminates To Wire & Cable
Connector Mounting Type Cable Mount (Free-Hanging)
Connector Product Type Connector Assembly
Connector standard Sensor connector
Connector System Cable-to-Cable
Contact Current Rating (Max) 4
Contact Material Brass nickel plated
Contacts Preloaded Yes
Current Rating 4A
Durability rating 100
Factory Installed Backshell With
Hermetically Sealed Yes
IP Rating IP67
Mating Alignment With
Mating Alignment Type Keyed
Mating Retention Type Threaded Coupling
max. cross section 0.82mm²
Max. temperature +85°C
Min. temperature -40°C
Nominal Voltage 250V
Number of Positions 3
Number of Power Positions 0
Number of Signal Positions 3
Operating Temperature Range -40 – 185
Operating Voltage 250
Polarization Code A
Primary Product Color Black
Reverse Gender Yes
Sealable Yes
Shell Base Material Copper Alloy
Shell Plating Material Nickel
Shell Type Metal
Shielded Yes
Thread type (wiring and installation) PG9
Thread type connection side M12
UL Flammability Rating UL 94HB
Wire Gauge (mm²) 0.20mm²
Wire Size 18 – 24
