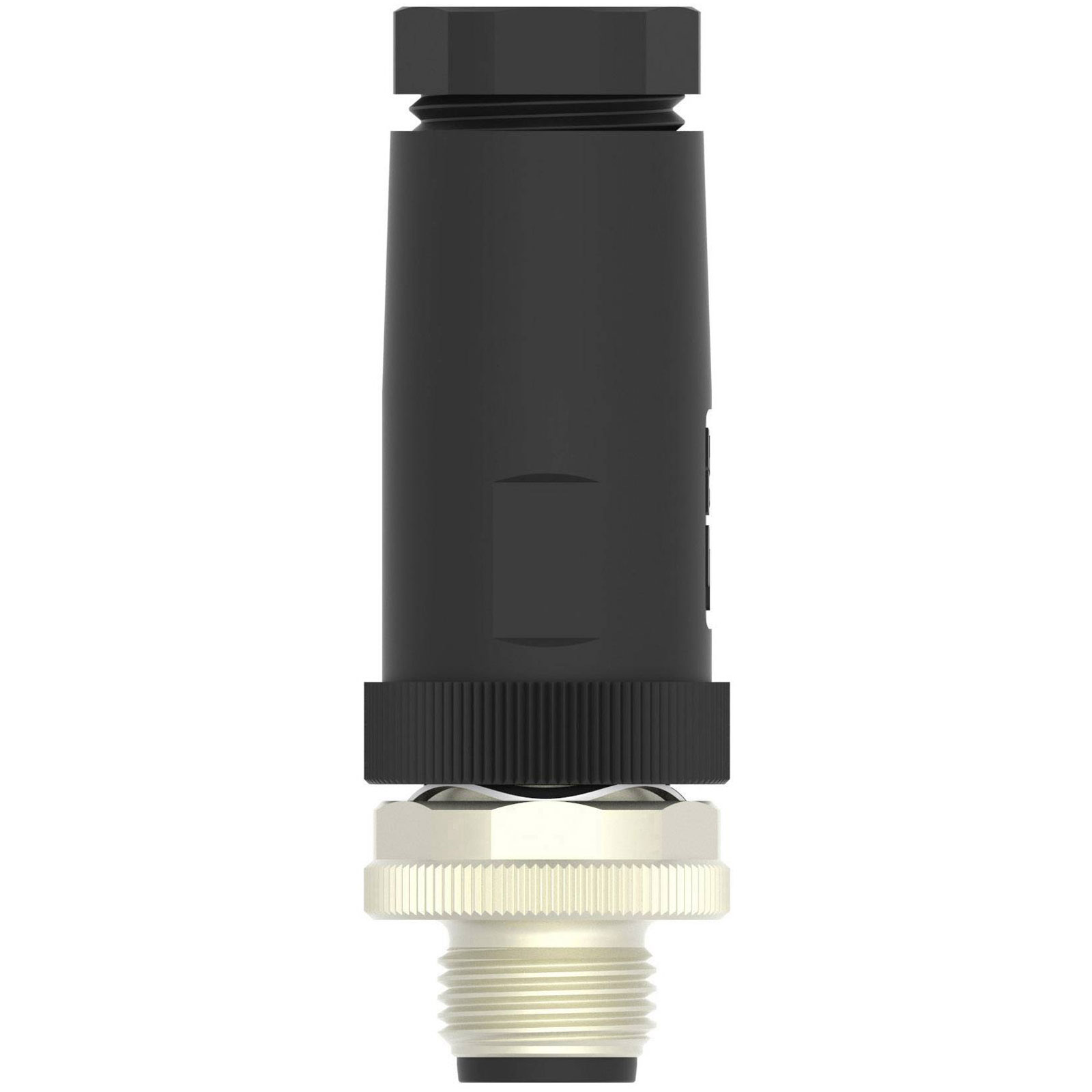

TE Connectivity T4111402041-000 Sensor/actuator M12 Plug 4 Pins

The TE Connectivity T4111402041-000 is an M12 plug, straight connector designed for sensor and actuator applications. It features four pins for secure electrical connections. This connector is typically used in industrial automation and control systems.

Type	Plug, straight
Number of Contacts	4
Connector Size	M12
Gender	Plug
Assembly Type	Electrical Connector
Circuit Application	Signal
Circular Connector Contact Type	Pin
Circular Connector Insulation Material Type	Polyamide 66 GF25
Circular Connector Shell Size	20
Circular Connector Type	Plug
Coding	B
Colour	Black
Connector & Contact Terminates To	Wire & Cable
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector Product Type	Connector Assembly
Connector standard	Sensor connector
Connector System	Cable-to-Cable
Contact Current Rating (Max)	4
Contact Material	Brass
Contacts Preloaded	Yes
Current Rating	4A
Durability rating	100
Factory Installed Backshell	No
Hermetically Sealed	Yes
IP Rating	IP67
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention Type	Threaded Coupling
max. cross section	0.82mm²
Max. temperature	+85°C
Military Spec	False
Min. temperature	-40°C
Nominal Voltage	250V
Number of Positions	4
Number of Power Positions	0
Number of Signal Positions	4
Operating Temperature Range	-40 – 185
Operating Voltage	250
Packaging Quantity	1
Polarization Code	B
Primary Product colour	Black
REACH	Compliant
Reverse Gender	Yes
ROHS	Yes
Sealable	Yes
Shell Base Material	Plastic
Shell Plating Material	Unplated
Shell Type	Plastic
Shielded	No
Thread type (wiring and installation)	PG9
Thread type connection side	M12
UL Flammability Rating	UL 94HB
Wire Gauge (mm²)	0.20mm²
Wire Size	18 – 24
