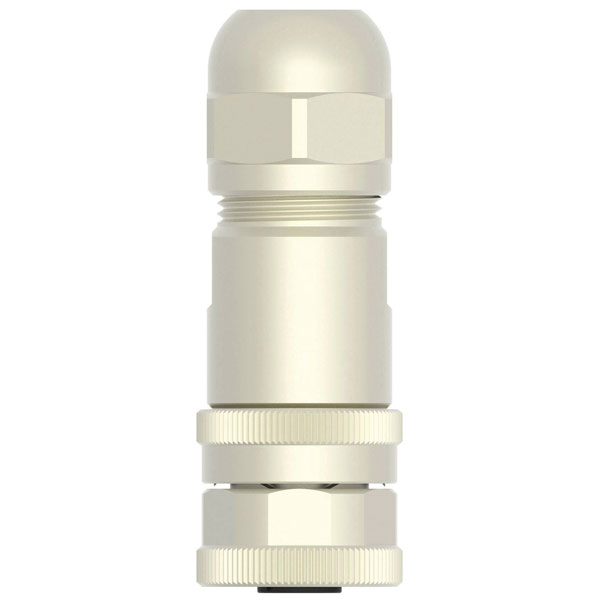

TE Connectivity's part number T4110401051-000 is an M12 female straight connector.
It features a B code with 5 positions and gold-plated contacts for enhanced conductivity and corrosion resistance.
This connector is ideal for industrial automation applications, providing reliable data and power transmission.
Its robust design ensures performance in harsh environments.
| Type |
Socket, straight |
| Number of Contacts |
5 |
| Assembly Type |
Electrical Connector |
| Circuit Application |
Signal |
| Circular Connector Contact Type |
Socket |
| Circular Connector Insulation Material Type |
Polyamide 66 GF25 |
| Circular Connector Shell Size |
20 |
| Circular Connector Type |
Receptacle |
| Coding |
B |
| Connection |
Soldering |
| Connection side A |
M12 socket, straight |
| Connection side B |
Customisable |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector cross-section (max.) |
0.25mm² |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Connector Assembly |
| Connector standard |
Sensor connector |
| Connector System |
Cable-to-Cable |
| Contact Current Rating (Max) |
4 |
| Contact Material |
Gold plated |
| Contacts Preloaded |
Yes |
| Current Rating |
4A |
| Durability rating |
100 |
| Factory Installed Backshell |
No |
| Hermetically Sealed |
Yes |
| IP Rating |
IP67 |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention Type |
Threaded Coupling |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Nominal Voltage |
60V |
| Number of Positions |
5 |
| Number of Power Positions |
0 |
| Number of Signal Positions |
5 |
| Operating Temperature Range |
-40 – 185 |
| Operating Voltage |
60 |
| Packaging Quantity |
1 |
| Polarization Code |
B |
| Primary Product Color |
Black |
| Reverse Gender |
Yes |
| Seal type |
Screw-on |
| Sealable |
Yes |
| Shell Base Material |
Plastic |
| Shell Plating Material |
Unplated |
| Shell Type |
Plastic |
| Shielded |
No |
| Thread type connection side |
M12 |
| UL Flammability Rating |
UL 94HB |
| Wire Size |
18 – 24 |
