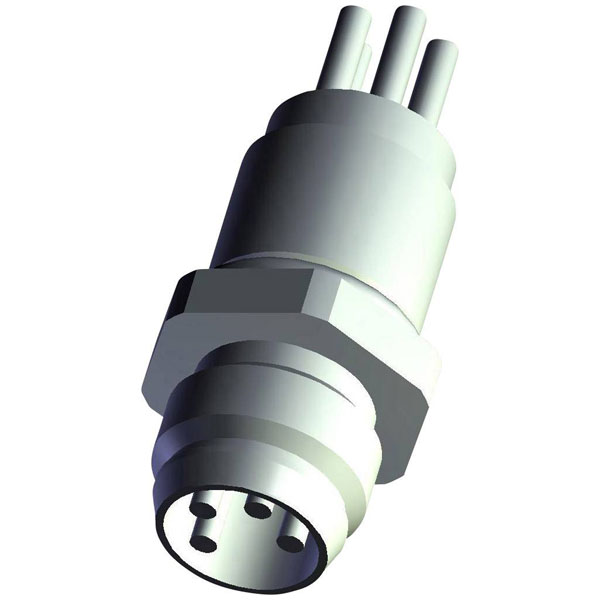

TE Connectivity's T4070014041-001 is an M8 connector with a male, unshrouded, 4-position design.
It is intended for rear mounting, providing secure connections in compact spaces.
This connector is ideal for use in industrial automation and control systems.
Its durable construction ensures reliable performance in harsh environments.
| Type |
Plug, mount |
| Number of Contacts |
4 |
| Connector Size |
M8 |
| Gender |
Plug |
| Assembly Type |
Electrical Connector |
| Circuit Application |
Signal |
| Circular Connector Contact Type |
Pin |
| Circular Connector Insulation Material Type |
Polyamide 67 GF30 |
| Circular Connector Shell Size |
12.6 |
| Circular Connector Type |
Plug |
| Connection |
Soldering |
| Connection Side A |
M12 plug, built-in |
| Connection Side B |
Customisable |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector cross-section (max.) |
0.25mm² |
| Connector Mounting Type |
Panel Mount & Wire Mount |
| Connector Product Type |
Connector Assembly |
| Connector standard |
Sensor connector |
| Connector System |
Wire-to-Panel |
| Contact Current Rating (Max) |
3 |
| Contact Material |
CuZn (brass) |
| Contacts Preloaded |
Yes |
| Current Rating |
4A |
| Factory Installed Backshell |
No |
| Hermetically Sealed |
Yes |
| IP Rating |
IP67 |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention Type |
Threaded Coupling |
| Max. temperature |
+85°C |
| Military Spec |
False |
| Min. temperature |
-40°C |
| Nominal Voltage |
30V |
| Number of Positions |
4 |
| Number of Power Positions |
0 |
| Number of Signal Positions |
4 |
| Operating Temperature Range |
-40 – 185 |
| Operating Voltage |
30 |
| Packaging Quantity |
1 |
| Polarization Code |
A |
| Prewired |
Yes |
| Primary Product colour |
Black |
| REACH |
Compliant |
| Reverse Gender |
Yes |
| ROHS |
Yes |
| Seal Type |
Screw-on |
| Sealable |
Yes |
| Shell Base Material |
Copper Alloy |
| Shell Plating Material |
Nickel |
| Shell Type |
Metal |
| Shielded |
No |
| Thread type connection side |
M8 |
| UL Flammability Rating |
UL 94HB |
| Wire Size |
24 |
