TE Connectivity SDT-S-112DMR000 General Purpose Relay SPST-NO 12VDC 30A

TE Connectivity
Order Code:

13-8372

Brand: TE Connectivity MPN: SDT-S-112DMR000
Qty Unit Price (Ex VAT)
125+ £1.61
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 125
Available to back orderBack order, lead time 14 days

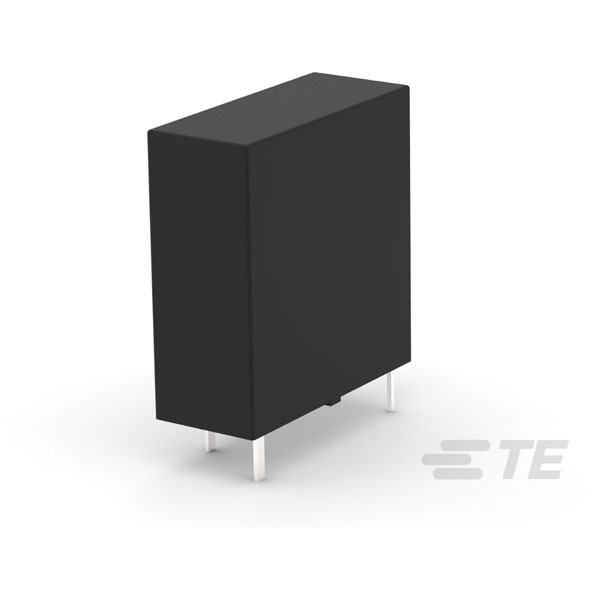

The TE Connectivity SDT-S-112DMR000 is a general-purpose relay with SPST-NO contact configuration.

It operates on 12VDC and is capable of handling up to 30A of current.

This relay is ideal for automotive and industrial applications where reliable switching is required.

Its robust design ensures longevity and dependable performance in demanding environments.


Coil Voltage 12V DC
Contact Configuration SPST (to be defined)
Switching Current 30A
Coil Current 45mA
Coil Power 600mW
Coil Resistance 266r
Coil Type Non-Latching
Coil Voltage (DC) 12v
Contact Current Rating 10a
Contact Material Tin, Silver
Contact Voltage Rating (DC) 30v
Height 0.984inch
Length 0.945inch
Max Operating Temperature 70°C
Min Operating Temperature -30°C
Mount Through Hole
Operate Time 15ms
Package Quantity 1000
Packaging Tray
Reach SVHC Compliant Unknown
Relay Type General Purpose
Release Time 5ms
RoHS Compliant Yes
Series SDT-R, OEG
Termination PCB
Throw Configuration SPST
Type Relay
Weight 0.388oz
Width 10mm
