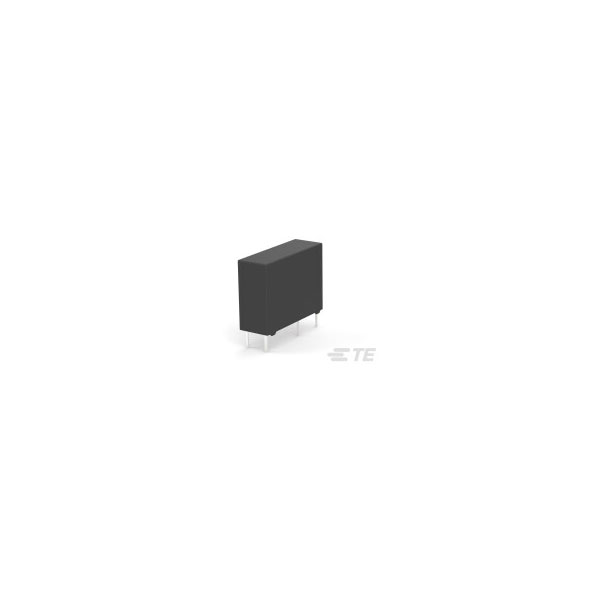

TE Connectivity PCJ-112D3MH301 Relay SPST-NO 3A 12VDC Soldered

Inc VAT

Qty	Unit Price (Ex VAT)
100+	£2.00

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 100

Available to back orderBack order, lead time 4 months

The TE Connectivity PCJ-112D3MH301 is a single-pole, single-throw, normally open relay.

It operates with a coil voltage of 12VDC and can handle a current of up to 3A.

Typical applications include automotive and industrial control systems.

The sealed design enhances durability and reliability in various environments.

Coil Voltage	12V DC
Contact Configuration	SPST (to be defined)
Application(s)	POWER
Coil Current	5a
Coil Power	200mW
Coil Resistance	720r
Coil Type	Non-Latching
Coil Voltage (DC)	12v
Contact Current Rating	3a
Contact Material	Silver
Contact Voltage Rating (AC)	250v
Current Rating	8a
Depth	7mm
Height	0.591inch
Length	20.4mm
Life (Hours)	100000Hour
Max Voltage Rating (AC)	400v
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-40°C
Mount	PCB, Through Hole
Package Quantity	500
Packaging	Box
Power Consumption	200mW
Reach SVHC Compliant	Unknown
Relay Type	General Purpose
RoHS Compliant	Yes
Series	PCJ
Termination	PCB
Throw Configuration	SPST
Type	Relay
Weight	0.141oz
Width	0.276inch
