TE Connectivity OJE-SH-124DM000 Relay Low Signal PCB SPST-NO 5A 24VDC

TE Connectivity
Order Code:

13-8362

Brand: TE Connectivity MPN: OJE-SH-124DM000
Qty Unit Price (Ex VAT)
125+ £1.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 125
Available to back orderBack order, lead time 14 days

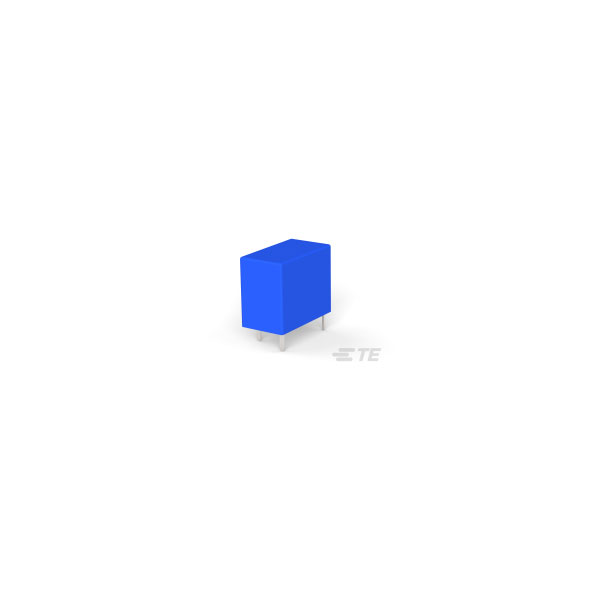

The TE Connectivity OJE-SH-124DM000 is a low signal relay with a single pole, single throw normally open configuration.

It supports a contact current rating of 5 amperes and operates at a coil voltage of 24 volts DC.

The relay is ideal for use on a printed circuit board in telecommunications and office equipment.

Its compact design ensures reliability in controlling low power signals.


Type Relay
Coil Voltage 24V DC
Contact Configuration SPST-NO
Switching Current 5 AA
Coil Resistance 1.28kRO
Length 0.717inchmm
Width 0.4inchmm
Height 14.7mm
Coil Current 3a
Coil Power 500mW
Coil Type Non-Latching
Coil Voltage (DC) 24v
Contact Current Rating 5a
Contact Material Silver
Contact Voltage Rating (DC) 30v
Lead Free Lead Free
Max Operating Temperature 60°C
Max Voltage Rating (AC) 265v
Max Voltage Rating (DC) 30v
Min Operating Temperature -30°C
Mount Through Hole
Packaging Tray
Reach SVHC Compliant Unknown
RoHS Compliant Yes
Termination PCB
Throw Configuration SPST
Weight 9g
