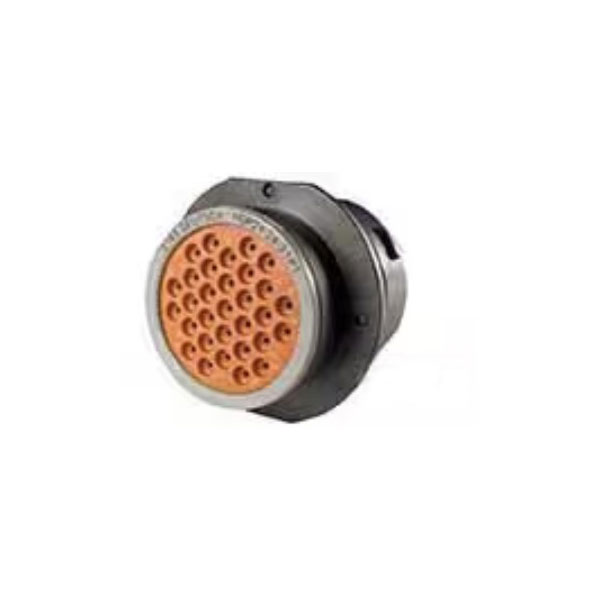

The TE Connectivity HDP24-24-31PT is a 31-position automotive connector housing from the DEUTSCH HDP20 Series, designed for demanding power and signal applications in commercial vehicles, off-highway equipment and industrial systems.
This panel-mount receptacle housing accepts male terminals and features a sealed construction to provide reliable performance in harsh operating environments.
Suitable for 12V, 24V and 48V electrical architectures, the housing offers a robust interconnection solution for applications exposed to moisture, dirt, vibration and temperature extremes.
Key Features
- DEUTSCH HDP20 Series automotive connector housing
- 31 positions for high-density wiring applications
- Housing for male terminals
- Wire-to-panel connector system
- Sealable design for environmental protection
- Panel-mount receptacle housing
- Suitable for power and signal circuits
- Compatible with 12V, 24V and 48V vehicle electrical systems
- Operating temperature range from -55°C to +125°C
- Black housing with hybrid contact arrangement
| Mounting Type |
Termination |
| Plug / Socket |
Plug |
| No. of Contacts |
31 |
| Colour |
Black |
| Connection Angle |
180° |
| Connector System |
Wire-to-Wire |
| Contact Shape |
Circular |
| Contact Type |
CRIMP |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-1 |
| Height |
2inch |
| Housing Colour |
Black |
| Hybrid Connector |
No |
| Length |
41.86mm |
| Maximum Operating Temperature |
125°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Panel, Bulkhead, Front Side Nut |
| Number of pins |
31 |
| Number of Positions |
31 |
| Number of Ways |
31 |
| Orientation |
Straight |
| Packaging |
Bulk |
| Polarized |
Yes |
| Ratings |
IP68, Waterproof, Dust Tight |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
HDP20 Serie |
| Serviceable |
Yes |
| Shell Material |
Nylon |
| Shielding |
Unshielded |
| Strain Relief |
Add By Accessory |
| Total no. of pins |
31 |
| Type |
Plug |
