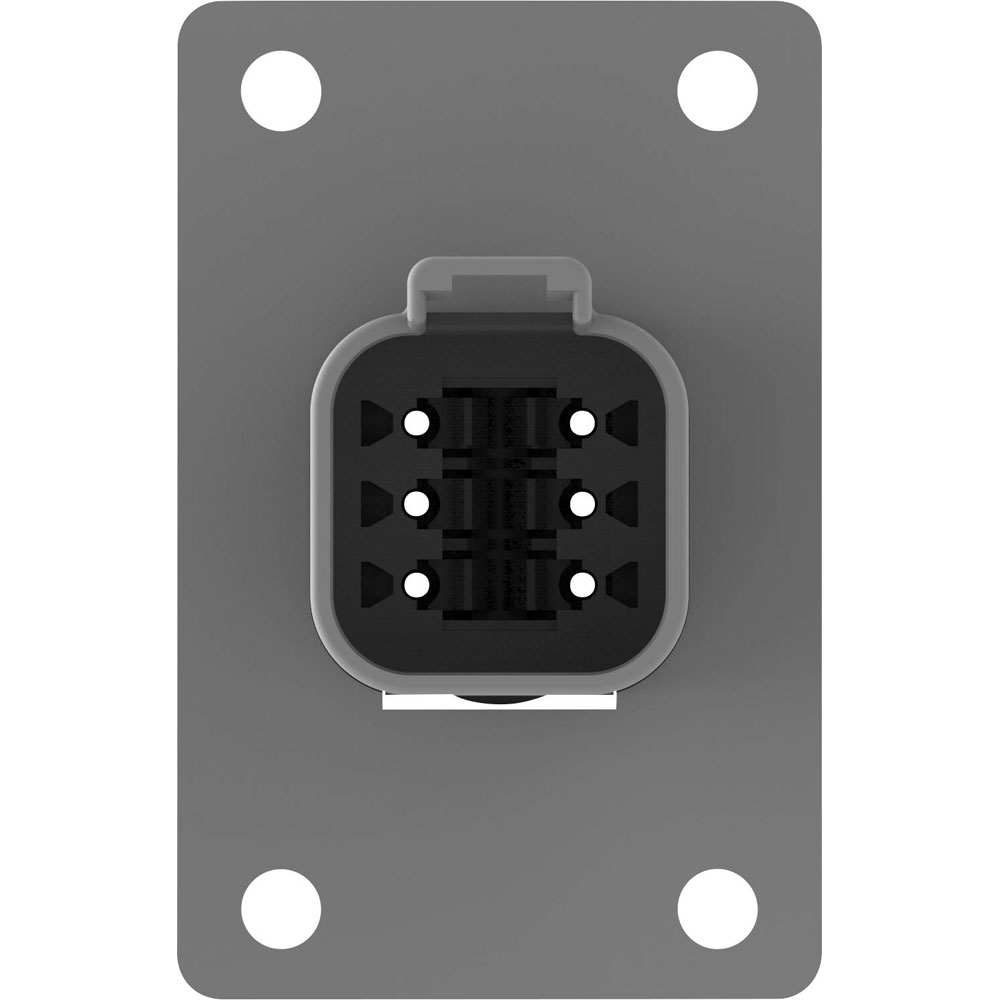

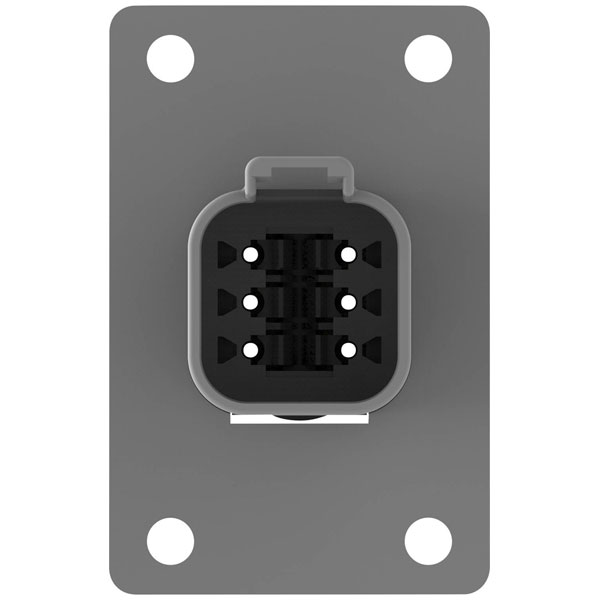

TE Connectivity DT6S-BT DT Bullet Connector 6 Pins Housing & Contacts

TE Connectivity's DT6S-BT is a bullet connector bend relief designed for the DT series, supporting six pins. This component is used to provide strain relief and protection for wire terminations in harsh environments, enhancing the durability of electrical connections. Typical applications include automotive and industrial wiring systems where robust and reliable connectors are essential.

Type	Bullet connector bend relief
Number of Contacts	6
Number of Rows	2
Cable Ø (max.)	12.7mm
Cable Ø range	12.7 - 12.7mm
Cable Ø up to	12.7mm
Case Material	PVC
Colour	Grey
Compatible Cable Diameter Range	0 – .5
Connection Angle	180°
Cross Section	2 mm² (max)
Current Rating	13A
IP Rating	IP6K9K
max. cross section	2mm²
Maximum Operating Temperature	100
Maximum Temperature	+100°C
Min. temperature	-40°C
Minimum Operating Temperature	-29
Nominal Voltage	1500V AC
Number of pins	6
Operating Temperature Range	-20 – 212
Packaging Method	Package
Packaging Quantity	1
Primary Product Material	PVC
Sealable	No
Series	DT
Wire Gauge (AWG)	20 - 14
