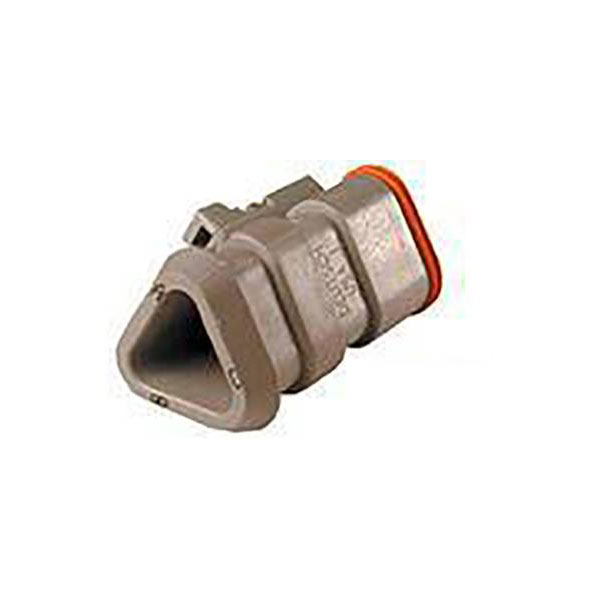

TE Connectivity DT06-3S-E008 DT Socket Housing 3 Pins 1 pc

The TE Connectivity DT06-3S-E008 is a socket housing cable with a total of three pins. This durable component is designed for reliable electrical connections, commonly used in automotive and industrial applications. Its robust construction ensures secure connectivity in challenging environments.

Type	Socket, straight
Number of Contacts	3
Gender	Socket
Number of Rows	3
Case Material	PA GF
Colour	Grey
Connection Angle	180°
Connector System	wire-to-wire
Contact Gender	FEMALE
Dimensions	(L x W x H) 20.23 x 24.66 x 40.67 mm
Height	40.67mm
IP Rating	IP68
Length	20.23mm
Maximum Operating Temperature	125
Maximum Temperature	+125°C
Maximum Wire Size AWG	14
Min. temperature	-55°C
Minimum Operating Temperature	-55
Number of pins	3
Rated Current (Signal)	13
Series	DT
Termination Type	CRIMP
Total Number of Contacts	3
Width	24.66mm
Wire Gauge (AWG)	14
