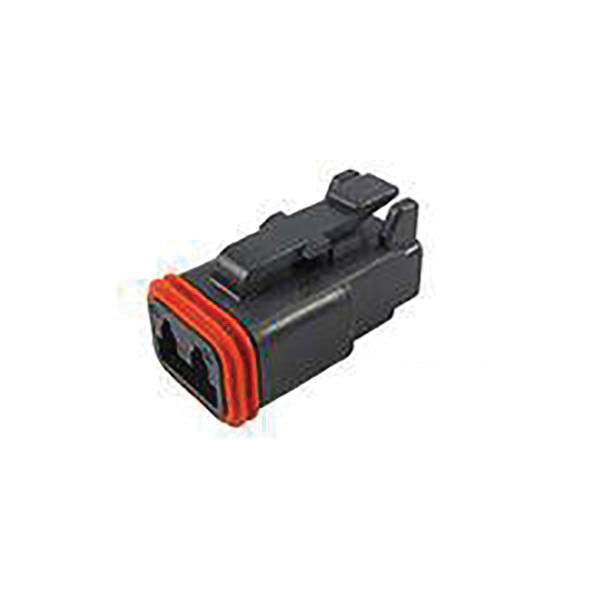

Image Representative of Range

TE Connectivity DT06-12SD DT Socket Housing 12 Pins 1 pc

MPN: DT06-12SD
Brand: TE Connectivity
EAN-13: 2050005363875
Order Code: 07-5273
Country of Origin: USA

RoHS Compliant
Free UK shipping available

View Full Product Range (36)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£28.37
10+	£25.94
50+	£23.30

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 8 in stock

Product Details
Product Range
Quick Quote

The TE Connectivity DT06-12SD is a shrouded male connector plug with 12 positions.

It is part of the DT Series, designed for robust performance in harsh environments.

This connector is typically used in automotive and industrial applications.

Its reliable sealing technology ensures secure connectivity.

Type	Socket, straight
Number of Contacts	12
Gender	Male
Number of Rows	2
Case Material	PA GF
Colour	Brown
Connection Angle	180°
Connector System	wire-to-wire
Contact Gender	FEMALE
Dimensions	(L x W x H) 40.56 x 18.19 x 30.94 mm
Height	30.94mm
Industrial packaging	No
IP Rating	IP68
Length	40.56mm
Maximum Operating Temperature	125
Maximum Temperature	+125°C
Maximum Wire Size AWG	14
Min. temperature	-55°C
Minimum Operating Temperature	-55
Pins per row	6
Rated Current (Signal)	13
Series	DT
Termination Type	CRIMP
Total Number of Contacts	12
Width	18.19mm
Wire Gauge (AWG)	14
