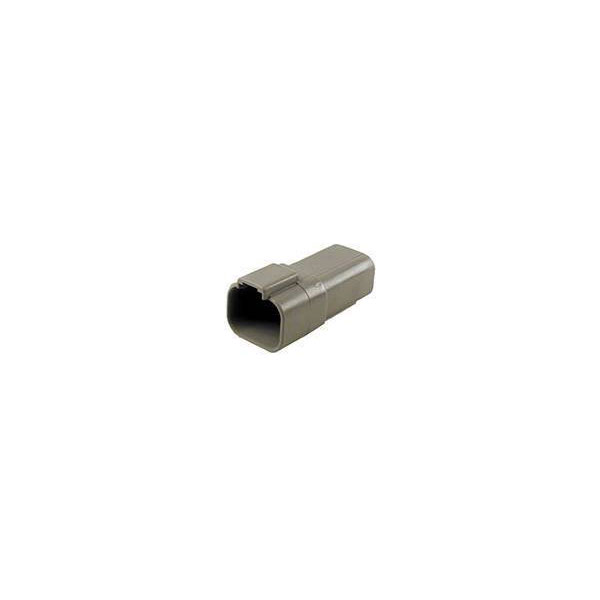

TE Connectivity DT04-4P-C015 DT Connector Plug 4-Pin Includes Housing

TE Connectivity
Order Code:

07-5238

Brand: TE Connectivity MPN: DT04-4P-C015 EAN-13: 2050003953306
Qty Unit Price (Ex VAT)
3+ £1.55
25+ £1.24
100+ £1.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
481 in stock, despatched in 4 working days

The TE Connectivity DT04-4P-C015 is a bullet connector plug with a straight orientation, featuring four pins and belonging to the DT series of round connectors. It is typically used in harsh environmental conditions for automotive and transportation applications. This durable connector ensures reliable power and signal transmission for various electrical systems.
Type Bullet connector
AWG 20 - 14
Cable Ø (max.) 3.68mm
Cable Ø range 1.35 - 3.68 mm
Cable Ø up to 1.35mm
Case Material Thermoplastic material
Connection Crimp
Connection angle 180°
Connector Type Plug, straight
Cross-section range 2 mm² (max)
Factory colour Grey
IP Rating IP67
max. cross section 2mm²
Max. temperature +85°C
Min. temperature -40°C
Nominal Current 13A
Nominal current - rounded value 13A
Nominal Voltage 1500V AC
Number of Pins 4
Series DT
Total no. of pins 4
